CNC 가공이란? 프레스 가공과 차이·비용·정밀도·생산수량별 선택 기준

What CNC Machining Actually Means

CNC machining is a production system in which numerical data controls machine axes, spindle motion, tool changes, and repeated tool paths. CNC is not the name of one cutting process. A CNC lathe rotates the workpiece while a turret tool moves along the axial and radial directions, whereas a machining center rotates the cutting tool and coordinates several axes for milling, boring, drilling, and tapping.

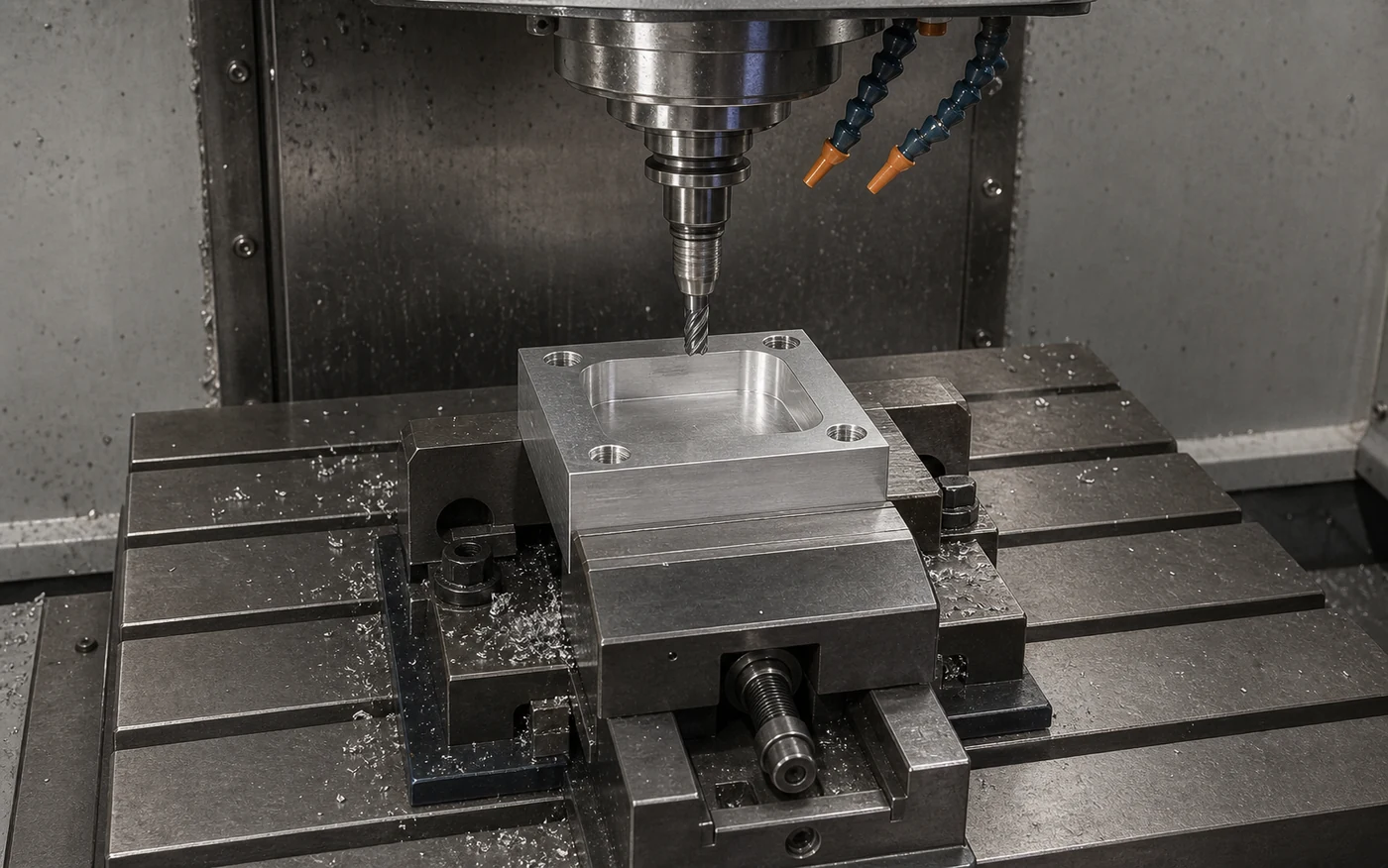

The term MCT is commonly used in Korea for a CNC machining center, but it should not be treated as a synonym for every CNC machine. The value of a machining center lies in connecting several cutting operations within one datum system and one programmed sequence. Fewer re-clampings generally mean fewer datum-transfer errors, provided that the fixture, tool access, and inspection strategy are sound.

Machining Centers and CNC Turning

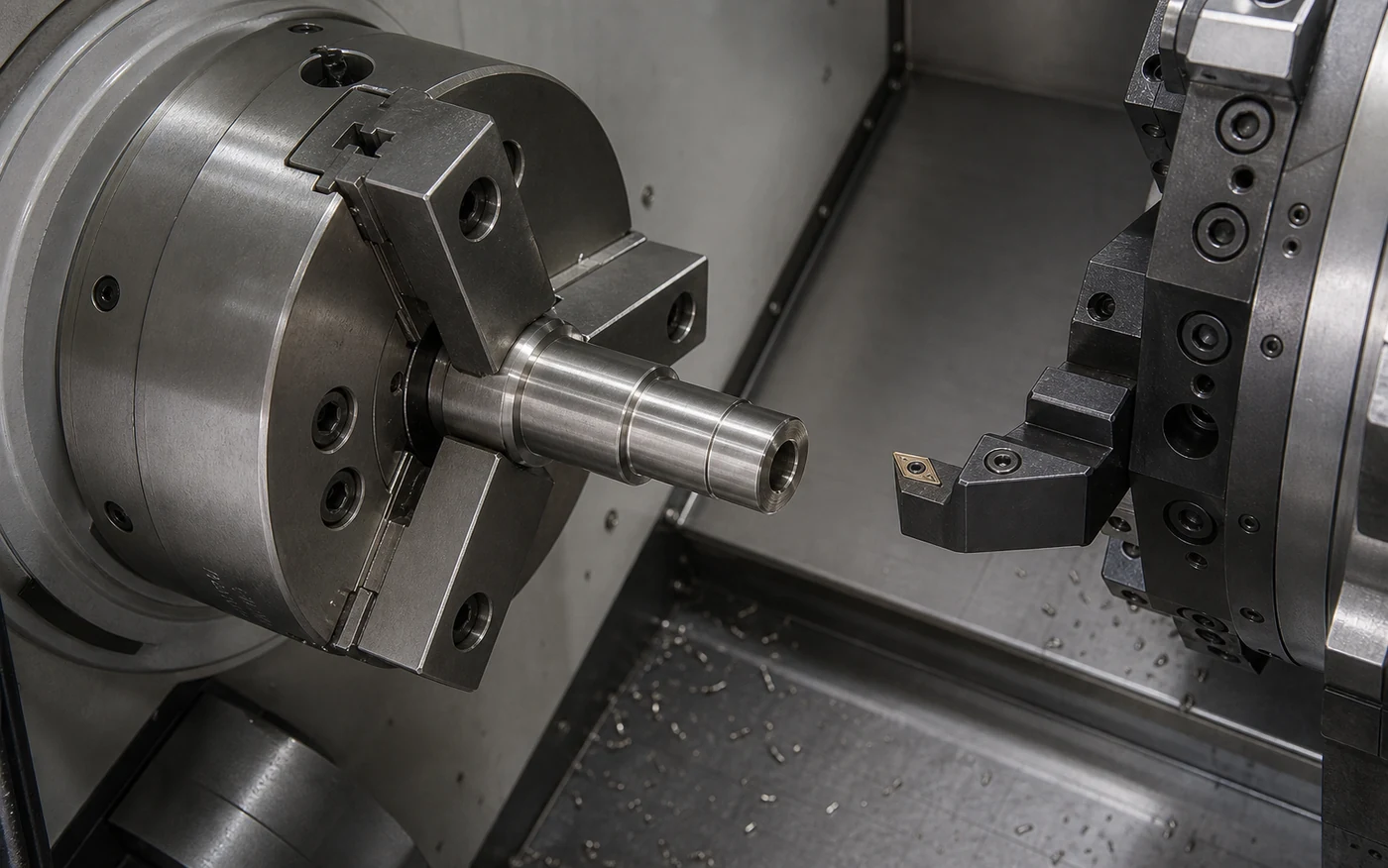

Milling removes material through the relative motion between a rotating multi-edge cutter and a restrained workpiece. It is suited to housings, pockets, planar datums, bores, hole patterns, and complex contours. CNC turning is suited to rotational features such as outside and inside diameters, faces, tapers, grooves, and threads. Turn-mill machines can combine these feature groups when off-center holes or milled flats are required.

Dimensional quality is not produced by the program alone. Cutting speed, feed per tooth or per revolution, depth of cut, edge geometry, tool overhang, holder runout, wear, vibration, cooling, chip evacuation, workholding stiffness, and thermal drift act together. Thin walls can move under cutting or clamping force, while long tools can generate chatter even when the nominal tool path is correct.

How Stamping Creates Parts

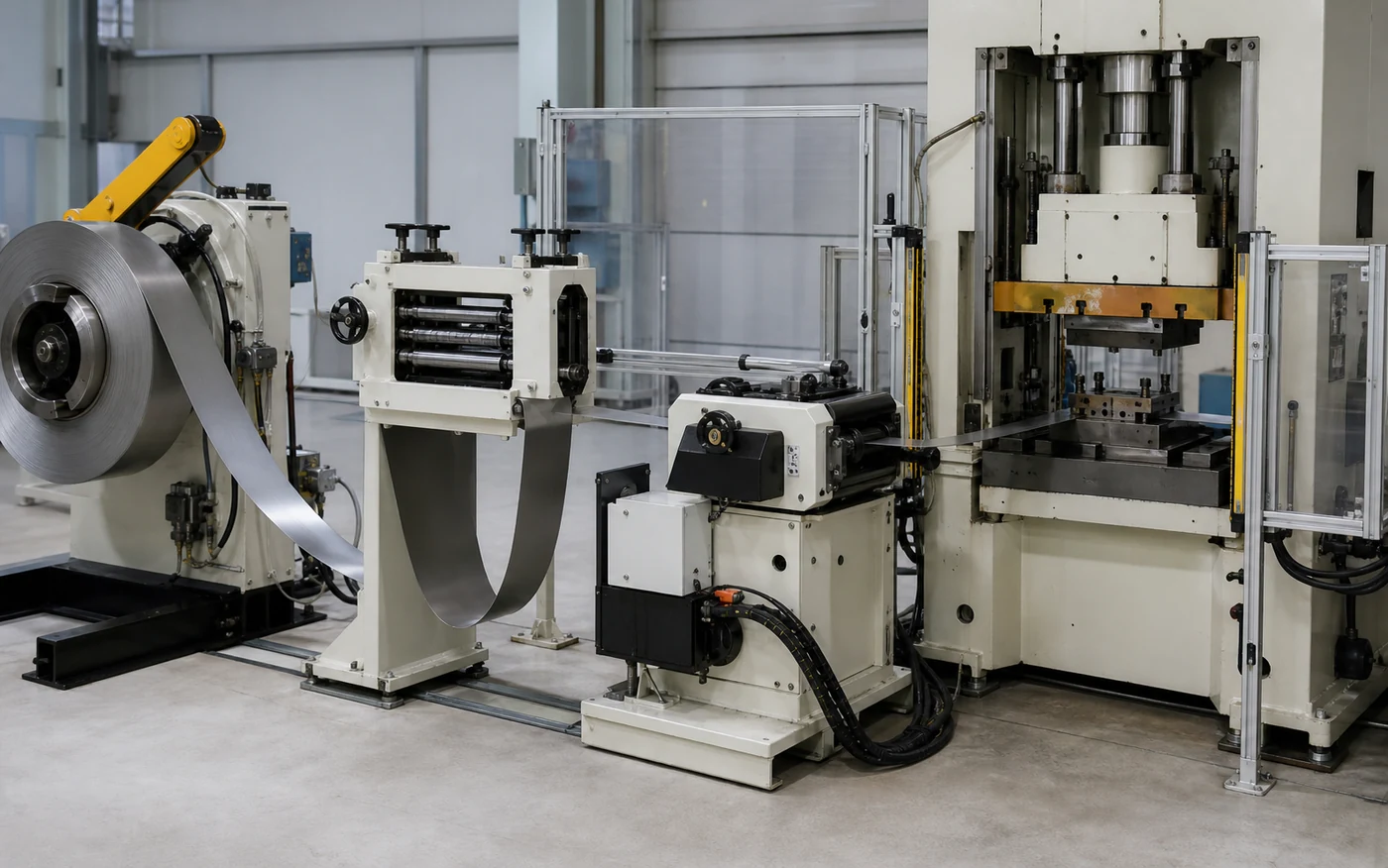

Stamping places sheet or coil material between an upper and lower die and applies repeated press loads. Blanking creates the outer product blank, while piercing removes a slug. Bending, flanging, beading, embossing, coining, and deep drawing create functional shape by controlled plastic flow rather than by removing the full material volume.

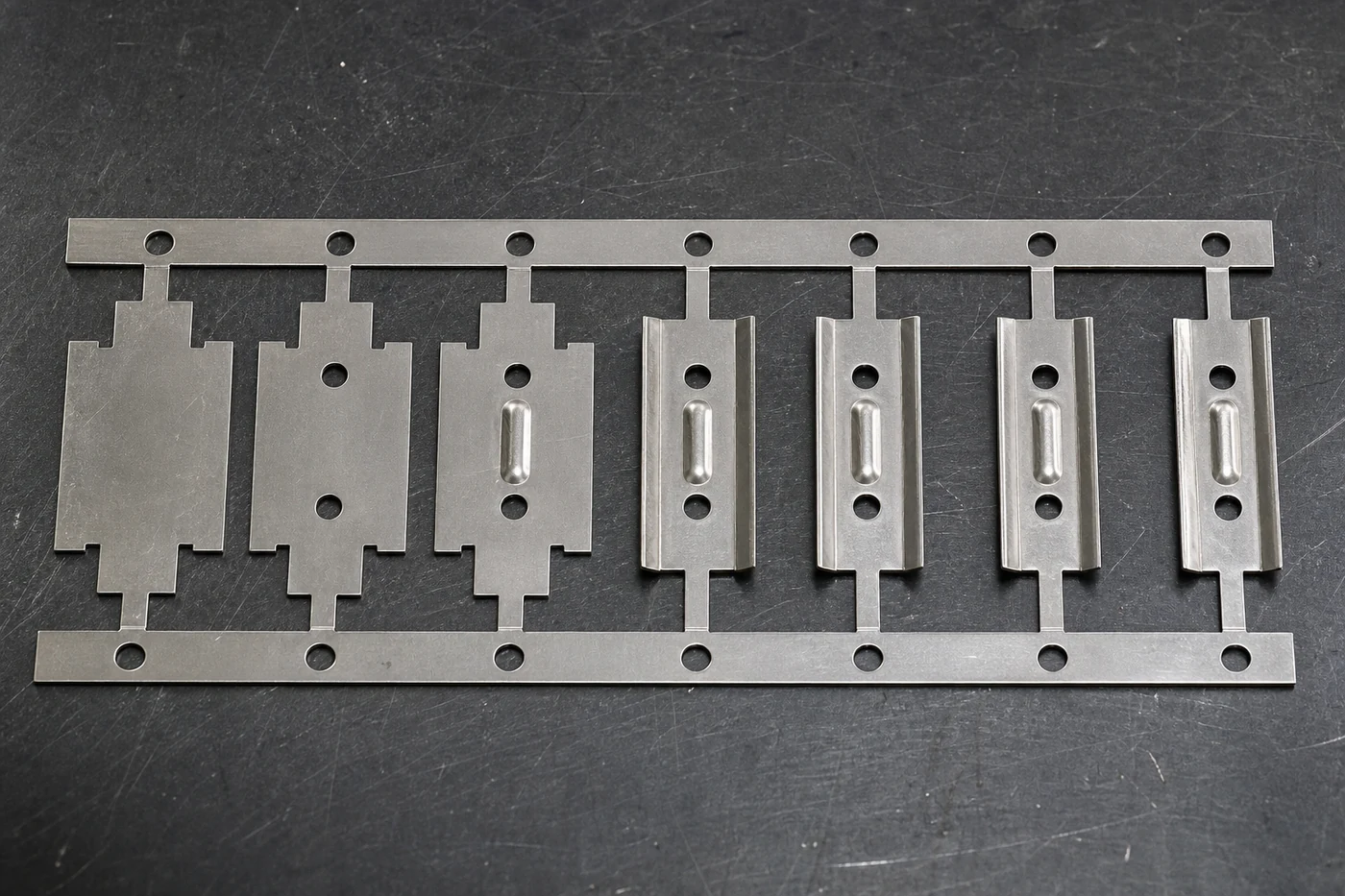

In progressive-die production, the strip advances by one fixed pitch through consecutive stations. Pilot holes and carriers maintain positional control until the part is separated at the final cut-off station. Feed error, die clearance, tool wear, lubrication, coil-property variation, and springback can shift the dimensional center of the process.

Geometry Before Production Volume

Solid parts with stepped thickness, precision bores, pockets, bosses, threads, multiple datums, and three-dimensional surfaces normally favor CNC machining. Sheet-metal brackets, terminals, clips, shields, covers, and shells with repeated holes, bends, flanges, and beads normally favor stamping when the geometry can be connected to a stable strip layout.

Production volume should not be used as the first filter. A thin bracket machined from thick billet may waste material and spindle time, while a deep three-dimensional housing forced into a stamping concept may require excessive forming stages and compensation. The correct sequence is geometry, material form, functional tolerance, design stability, production volume, and total cost.

Tolerance, Surface Integrity, and Sheared Edges

Machine-axis positioning accuracy is not identical to finished-part tolerance. Actual error includes machine geometry, spindle and workpiece thermal behavior, elastic deflection, fixture location, re-clamping, tool wear, and measurement uncertainty. A stable die can also achieve excellent repeatability, but sheet thickness, strength, feed position, clearance, die wear, and springback may move the process mean.

A machined surface is governed by tool path, feed, edge radius, runout, chatter, wear, and material behavior. Ra and Rz describe different surface characteristics and should be linked to an evaluation condition and a functional surface. A stamped sheared edge contains rollover, a burnished zone, a fracture zone, and burr. Flat-sheet roughness and cut-edge quality are therefore separate specifications.

Tooling Cost and Recurring Cost

CNC cost includes process planning and CAM, stock preparation, workholding and setup, cutting time, tool changes and wear, coolant, re-clamping, post-processing, inspection, and rework. Dedicated die cost is limited, but machine time accumulates for every part and material-removal volume strongly affects recurring cost.

Stamping cost includes die design and manufacture, assembly, tryout and compensation, press and feeder setup, strip scrap, stroke cost, die sharpening and spare components, deburring, cleaning, plating, inspection, and maintenance. The initial tooling burden can be high while the stabilized recurring cycle can be short. There is no universal break-even quantity because die complexity, strip utilization, material, tolerance, secondary work, maintenance, and design-change risk vary by project.

Production Volume and Engineering Change

CNC machining is usually effective when demand is uncertain, variants are frequent, or design validation is still active. Models, programs, and general-purpose fixtures can be changed without rebuilding a complete production die. Stamping becomes stronger when geometry, material specification, annual demand, and change control are stable enough to recover the tooling investment.

A controlled transition can move from CNC prototypes to material confirmation, forming analysis or development tooling, die tryout, dimensional compensation, initial capability study, and production approval. Capacity must include coil changes, die changes, setup approval, sorting, die maintenance, spare punches and dies, measurement queues, and downstream finishing rather than only nominal strokes or spindle hours.

Hybrid Stamping and Machining

Stamping and CNC machining are often complementary. A stamped near-net shape can receive CNC finishing only on a datum hole, bore, sealing face, thread, or mating surface. This can reduce material and cycle time compared with machining the full component from billet while stabilizing the features that are most sensitive to springback or sheared-edge quality.

Hybrid production requires a coherent datum strategy. Pilot and reference holes in the stamped preform, locating pins in the CNC fixture, and GD&T datums on the finished drawing must represent the same functional system. Heat treatment, residual stress, plating thickness, machining allowance, and masking sequence must be included before the process order is released.

Drawing, Quotation, and Quality Acceptance

A CNC drawing should separate functional datums, fits, GD&T, surface texture, thread depth, and nonfunctional general tolerances. A stamping drawing should define sheet grade, thickness and strength range, rolling direction when relevant, bend radius, burr direction, sheared-edge requirement, flatness, bend angle, and finishing surfaces.

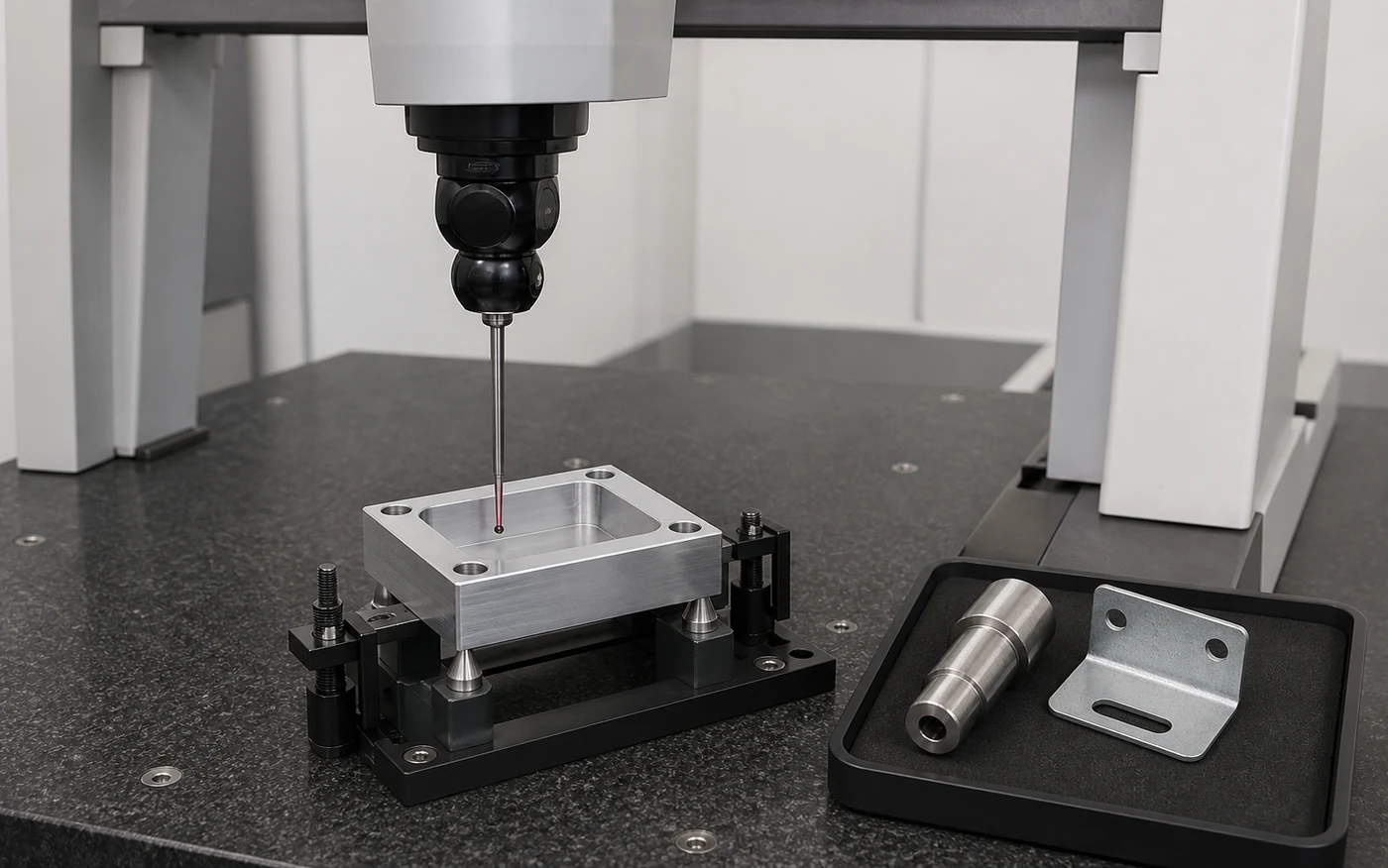

First-article inspection should connect material certification, dimensions, GD&T, surface texture, burr, appearance, and functional testing. Production control should track trends, capability, tool or die life, compensation history, engineering changes, and lot traceability. CMM data remains dependent on fixture, temperature, probe strategy, alignment, and measurement uncertainty.

The final process decision follows the sequence geometry → material → functional tolerance → design stability → total cost → production capacity. CNC machining, stamping, and a hybrid route are not ranked technologies; they are different ways of placing cost, flexibility, and process capability where the product needs them.
