AgSnO₂ 전기접점 미세조직 설계: 나노 첨가제와 아크 침식 제어

Functional Roles of the Ag Matrix and SnO₂ Phase

AgSnO₂ is a metal-matrix composite in which the silver phase forms the primary electrical and thermal conduction network, while the dispersed SnO₂ phase controls arc-driven melting, material transfer, and contact welding. Low contact resistance and long switching life cannot be predicted from oxide content alone. Particle size and morphology, dispersion spacing, Ag–SnO₂ interfaces, residual porosity, extrusion texture, and the condition of the resolidified surface layer operate as one connected performance system.

The silver matrix must remain sufficiently continuous to carry current, spread Joule and arc heat into the contact body and carrier, and recreate real contact spots after repeated switching. SnO₂ is not a conductive reinforcement. Its high thermal stability and hard dispersed structure restrict long-range flow of molten silver and the growth of metallic bridges between opposing contacts. Excessive oxide enrichment at the working surface, however, reduces the true conductive area and raises local temperature. A stable contact therefore requires both controlled oxide dispersion and an uninterrupted silver path.

Arc-Root Motion, Molten-Pool Evolution, and Material Transfer

During opening, the real conductive area contracts toward the final microscopic contact spot. Current density rises rapidly, the metallic bridge melts and ruptures, and an arc forms across the increasing gap. A stationary or slowly moving arc root produces localized melting, evaporation, and droplet ejection within a very short period. Electromagnetic force, vapor recoil pressure, surface-tension gradients, opening velocity, and contact bounce all influence the size and motion of the molten pool.

Damage continues after extinction. Pores, microcracks, protrusions, and depressions remain in the resolidified layer and guide the next arc toward another concentrated region. Poor wetting between Ag and SnO₂ allows the lower-density oxide phase to move and agglomerate near the molten surface. The resulting nonconductive enrichment increases contact-resistance scatter and temperature rise. Arc erosion, material transfer, and welding are therefore different outcomes of the same coupled thermal and mass-transport process rather than independent failure modes.

Particle Size, Morphology, and Dispersion Spacing

Reducing SnO₂ particle size can shorten dispersion spacing, divide the molten pool into smaller regions, improve densification, and raise hardness. It also increases total interfacial area. If mixing and compaction are not controlled, nano-scale powders can form large agglomerates, interrupt silver continuity, and generate forming cracks. “Smaller is always better” is not a valid design rule.

Morphology and connectivity can be as important as mean particle size. Short-range branched or coral-like oxide structures may limit long-distance silver flow and surface segregation more effectively than isolated spherical particles of a similar size. The more complex interface can simultaneously increase resistivity. Arc-erosion resistance and electrical conductivity do not necessarily improve in the same direction. Production acceptance should therefore include particle-size distribution, agglomerate size, spacing, extrusion orientation, oxide-rich bands, open porosity, and unoxidized regions at multiple section locations.

Interfacial Modification and Nano-In₂O₃

Additives primarily modify the Ag–SnO₂ interface and molten-zone behavior rather than simply hardening the composite. Improved wetting can reduce interfacial voids during sintering and suppress SnO₂ flotation and agglomeration during arc melting. Certain additives promote liquid-phase sintering; others alter molten-silver viscosity, surface tension, arc duration, or the direction of material transfer. Particle size and placement may matter more than nominal concentration.

In₂O₃ is one of the most established modifiers for AgSnO₂ electrical contacts. In an internal-oxidation route it can support oxygen transport and oxidation progress; in a powder-metallurgy route it can influence densification and dispersion stability. Under one reported vacuum hot-repressing composition and test condition, less-than-100 nm In₂O₃ suppressed molten-silver splashing and SnO₂ agglomeration. A 1 wt% addition reduced mass loss from 2.3 mg for the unmodified material to 1.4 mg, while relative density exceeded 99.5% and conductivity exceeded 71% IACS. These values are comparative results under the reported composition and test conditions, not universal production specifications.

CuO, Bi₂O₃, Rare-Earth Oxides, and Tungstate Strategies

CuO can modify the interface between SnO₂ particles and the silver matrix and can relieve local thermal stress produced by their different thermal-expansion behavior. A nano-CuO layer formed directly on SnO₂ may inhibit crack initiation and propagation more effectively than freely mixed CuO. Excessive Cu-containing phase at the working surface can oxidize and increase resistance, so distribution and residual phase must be controlled.

Bi₂O₃ can promote reaction-phase or transient-liquid formation, improving densification and oxide distribution. Excess liquid phase may create coarse reaction products, weak boundaries, or poor formability. Y₂O₃ and La-based oxides have been investigated for microstructure refinement, interfacial-energy reduction, and molten-pool stabilization. A reported 0.5 wt% Y₂O₃ condition produced a favorable balance in one hot-pressing study, but it cannot be transferred directly to different powders or switching duties.

WO₃ and Ag₂WO₄ are designed to influence arc extinction, interfacial coating, and the retention of dispersed SnO₂ within the eroded zone. For Ag–8 wt%SnO₂ tested at 24 V, 20 A, and 10,000 operations, WO₃ reduced the mass-loss rate by more than 50% relative to the unmodified reference, while the Ag₂WO₄-modified material approached the measurement limit under that specific test. Graphene nanoplatelets at 0.2 wt% reduced welding frequency and force in reported 36 V switching tests. Over-addition can weaken sintered bonding, create surface protrusions, and destabilize the arc.

Internal Oxidation, Powder Metallurgy, and Forming

Internal oxidation forms SnO₂ inside an Ag–Sn–additive alloy through oxygen diffusion. It can provide strong interfacial bonding and a continuous silver matrix, but high Sn content or a dense external oxide layer can restrict oxygen penetration and produce unoxidized core regions or particle-size gradients. Atomizing the alloy before internal oxidation shortens the diffusion distance, while making powder-surface oxide concentration and compact uniformity more critical.

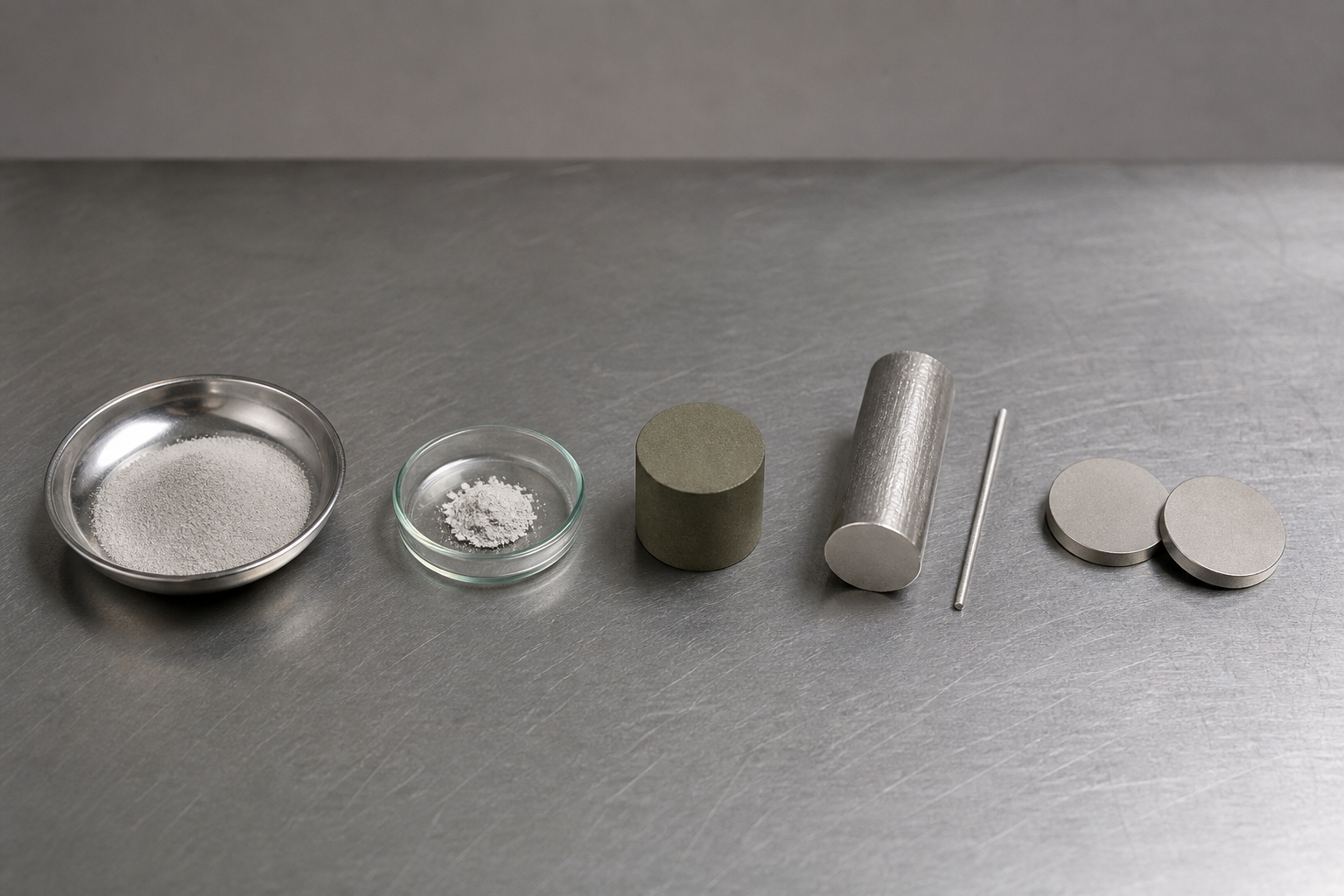

Powder metallurgy blends Ag powder, SnO₂, and selected additives before compaction, sintering, repressing, and extrusion. It offers high compositional flexibility but is sensitive to mixing uniformity, agglomeration, and residual porosity. Chemically coated powders can deposit silver around oxide particles and improve interface distribution, provided coating completeness and chemical residues are controlled.

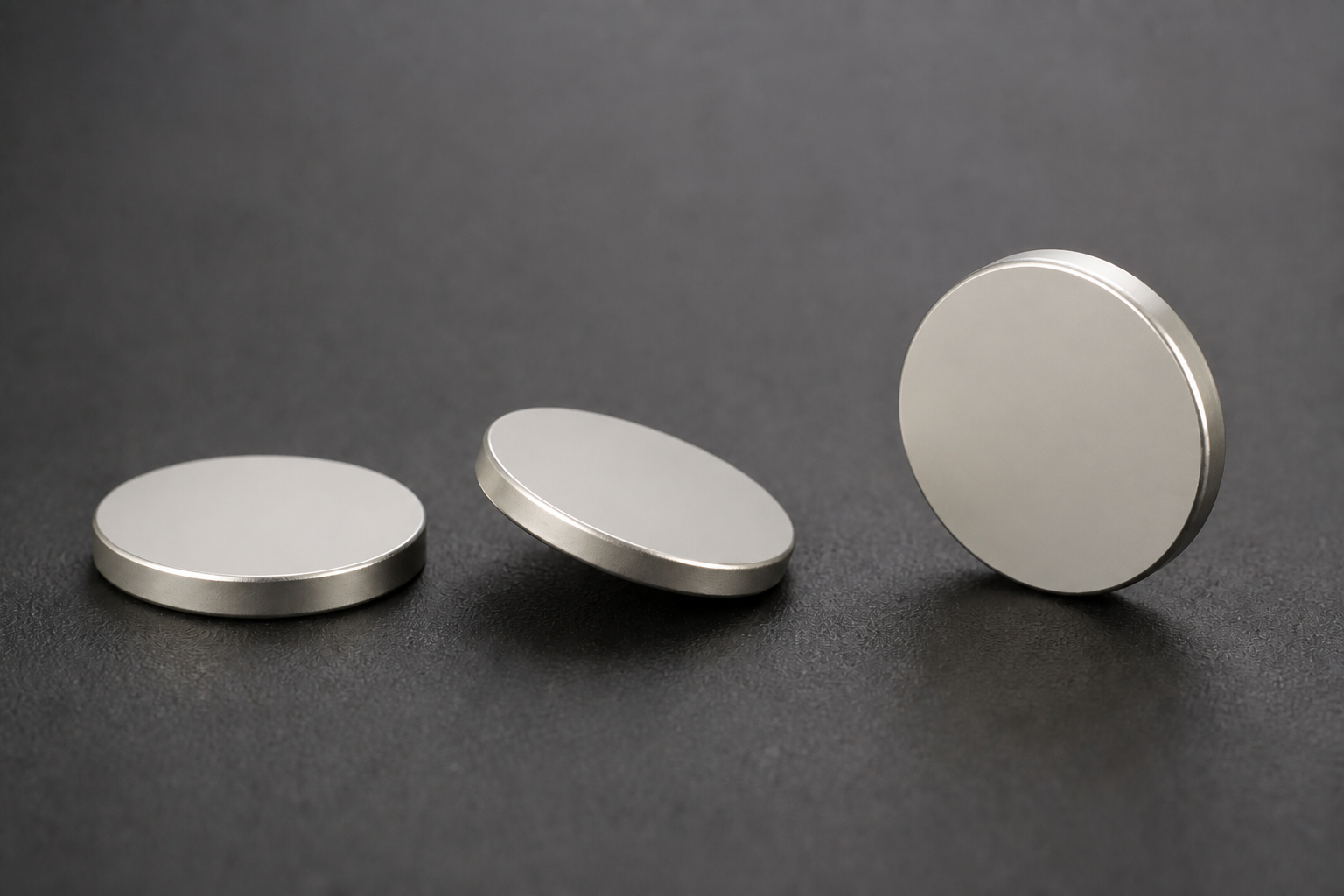

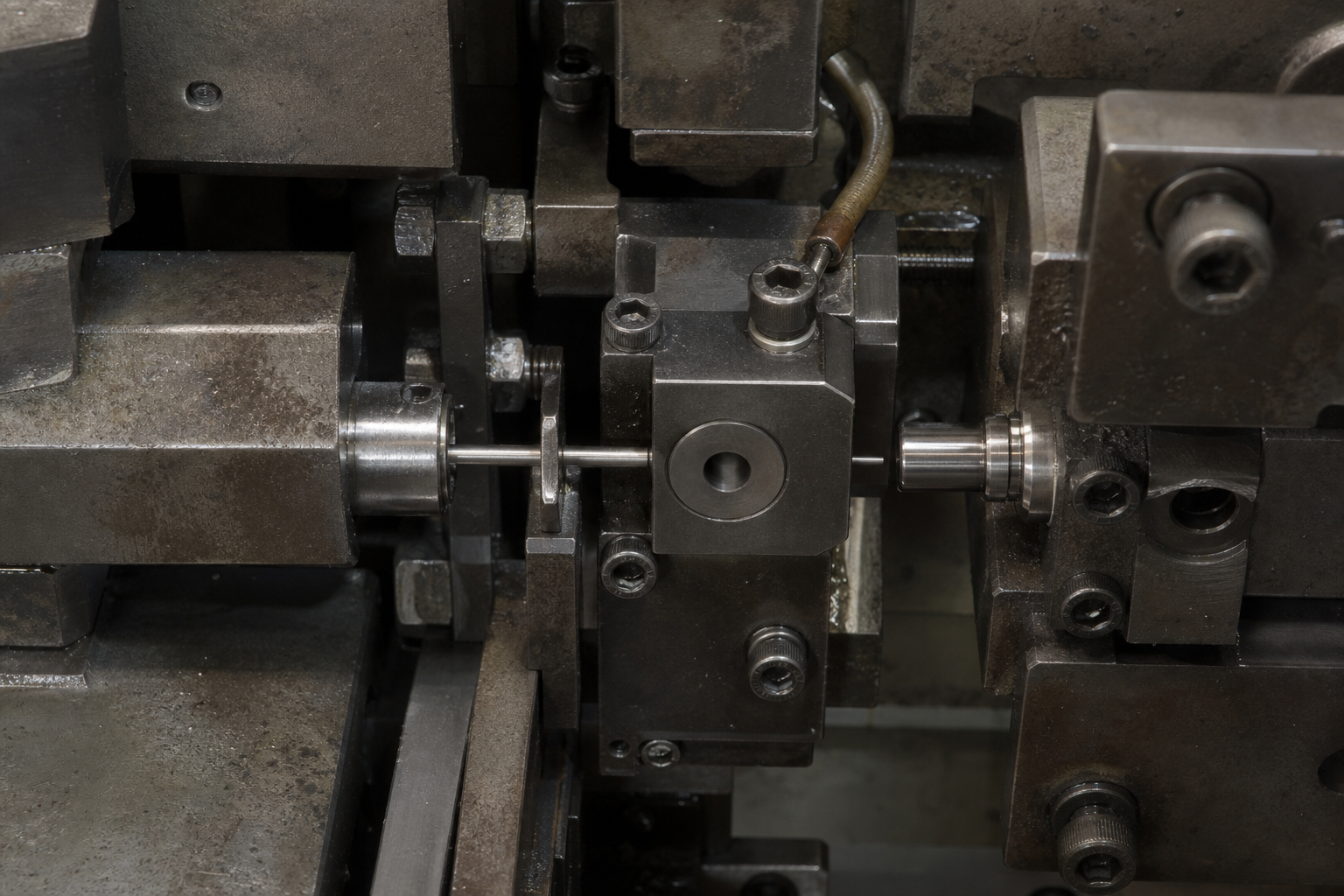

Hot extrusion reduces porosity and elongates agglomerates along the processing direction. Multi-stage drawing and intermediate annealing set wire diameter, strength, elongation, and cold-heading capability. Solid rivets have one AgSnO₂ body with a low circular head and a straight cylindrical shank. Button tips are low discs without a shank. Bimetal rivets use an AgSnO₂ working layer metallurgically bonded to a copper-based shank and support; a trimetal contact is not a stack of arbitrary discs. Product geometry must be classified correctly before joining and inspection requirements are assigned.

Switching-Duty Validation

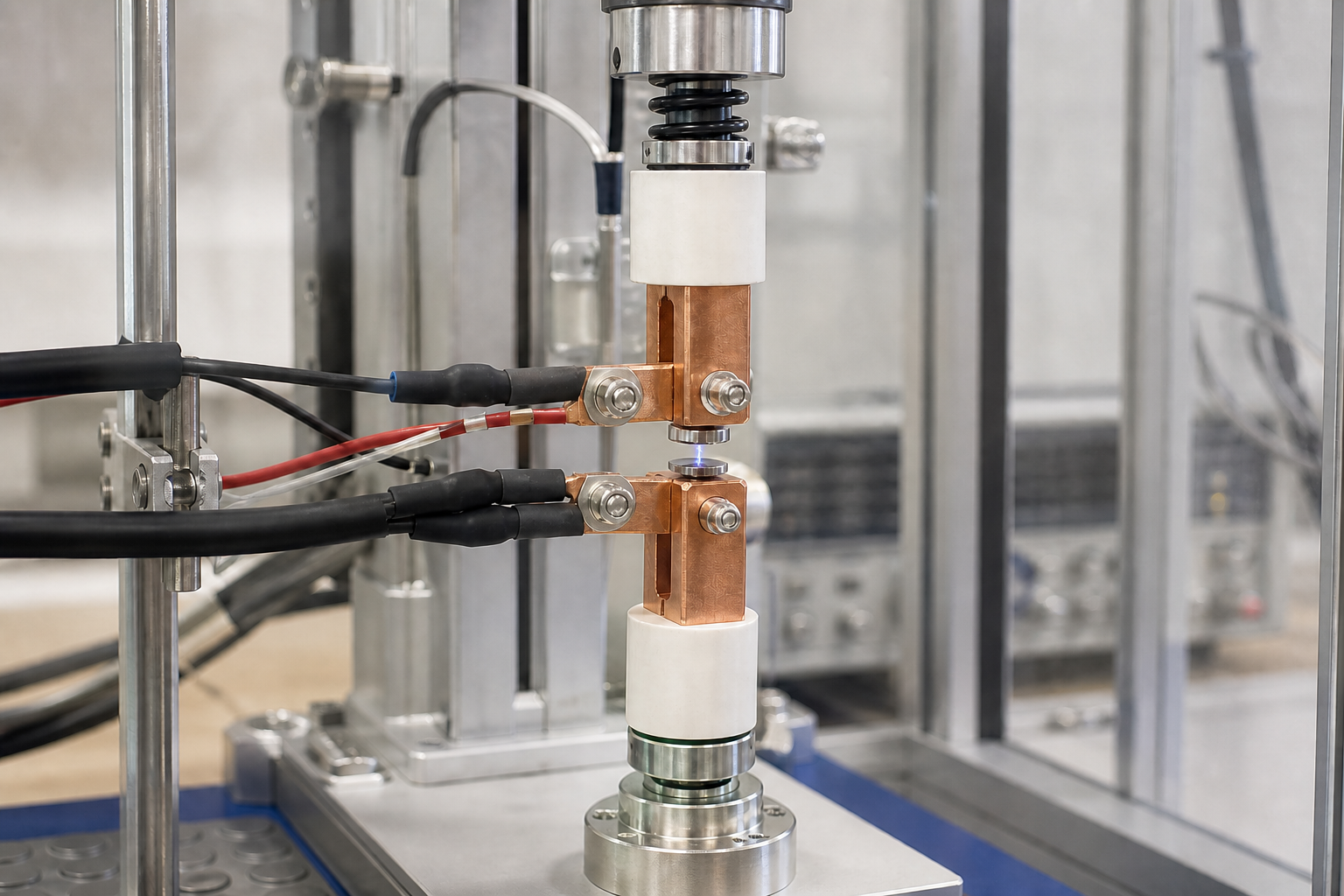

Material datasheets cannot determine contact life by themselves. AC or DC supply, voltage, steady and inrush current, resistive, inductive or capacitive load, contact force, opening speed, gap, bounce, atmosphere, polarity, and switching frequency must reproduce the intended device. The performance ranking of two compositions can change when arc duration or inrush duty changes.

Contact resistance should be measured by a four-terminal Kelvin method and reported as a time series with median, maximum, 95th percentile, and drift rather than a single mean. Arc voltage, current, duration, and energy should be recorded with bounce events. Separate mass changes of the fixed and moving contacts, 3D erosion volume, pit depth, welding frequency, separation force, and post-test SEM/EDS observations are needed to distinguish material transfer from net material loss.

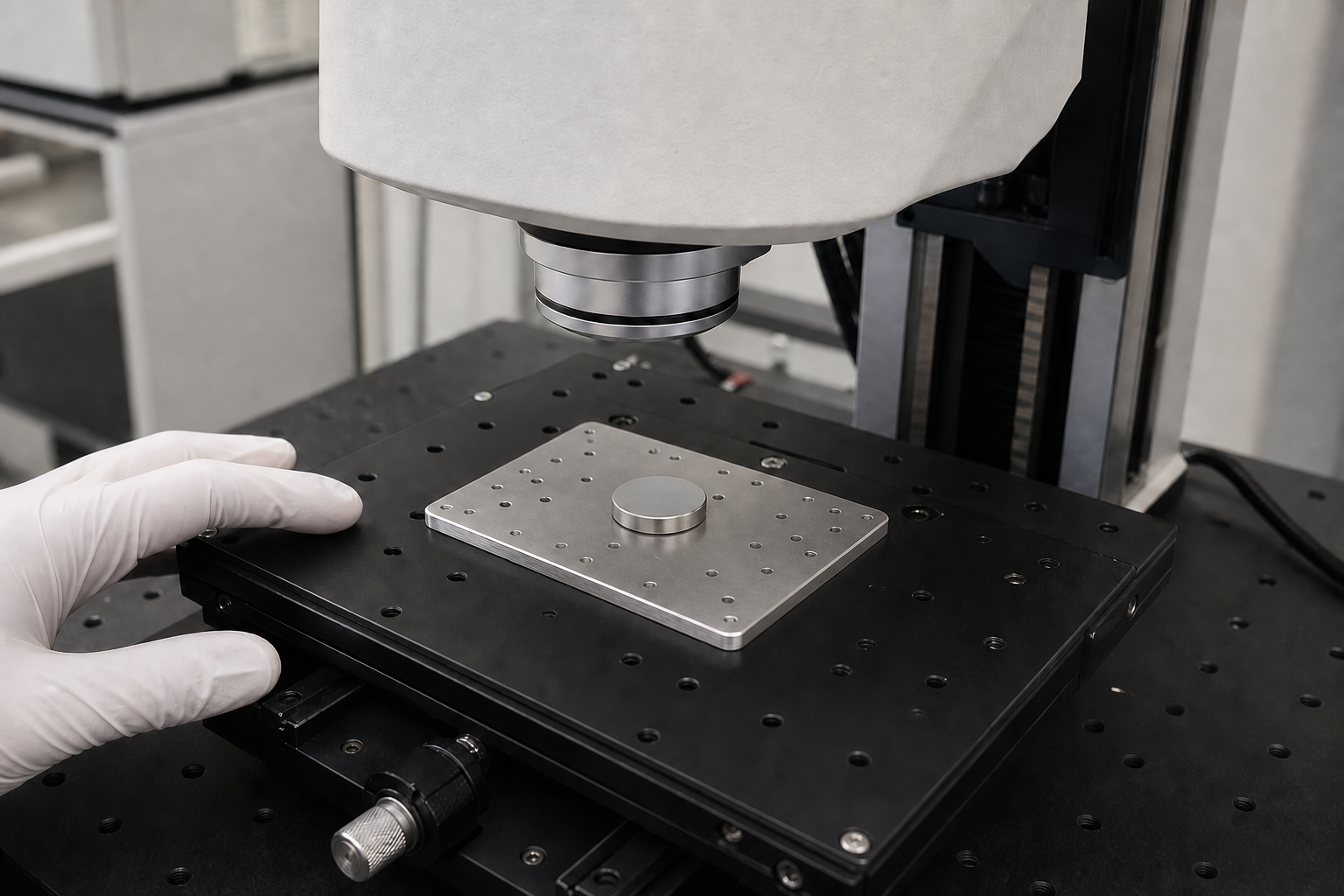

Material verification includes composition, reaction phases, relative density, open porosity, conductivity, hardness, and multi-location microstructure. Finished-contact verification adds working-face geometry, curvature, roughness, concentricity, edge cracking, and joint integrity. Joining processes such as riveting, resistance welding, and brazing require their own section, shear, tensile, void, and delamination criteria.

Production Specification and Acceptance

No additive is a universal optimum. The production specification should begin with the actual load spectrum and dominant failure mode, then define material and process CTQs. These include SnO₂ and additive content, particle and agglomerate distribution, density, conductivity, hardness, internal-oxidation or powder route, extrusion ratio, drawing and annealing history, forming direction, working-face finish, finished geometry, joining integrity, and cleaning condition.

Electrical-life acceptance should connect resistance drift, temperature rise, arc energy, welding separation force, erosion volume, and directional material transfer to the target operating life. Changes in powder source, additive particle size, oxidation cycle, sintering equipment, extrusion tooling, drawing schedule, heading die, carrier alloy, or joining process require a documented impact review. Reliable AgSnO₂ contacts are produced when microstructure, manufacturing history, contact geometry, and switching duty are approved as one system.
