전기 안정성과 환경 내구성을 동시에 만족하는 와이어 하네스

Wire Harness Delivering Both Electrical Stability and Environmental Durability

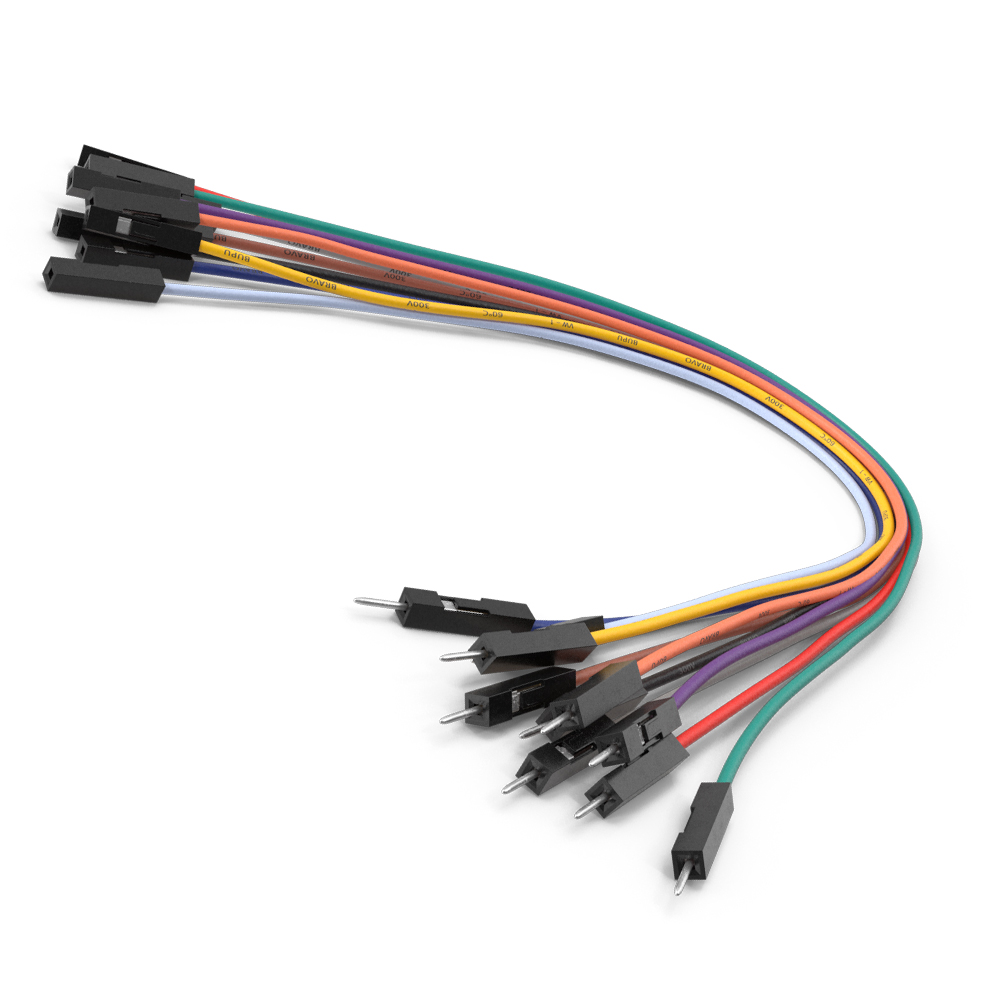

Wire Harness Cable

High-Reliability Wire Harness Design and Engineering Standards for Mission-Critical Industries

The reliability of a wire harness does not simply refer to durability. It is defined as the ability to perform electrical functions stably under specified conditions and over a given period, without failure, while meeting system requirements.

As modern industries rapidly transition toward electrification and intelligent systems, the role of wire harnesses—responsible for transmitting power and data—has evolved beyond simple components into critical infrastructure that determines the survivability of entire systems.

In particular, industries such as automotive mobility, electric vehicles (EVs), military equipment, and medical devices operate in environments where even a single signal error or power interruption can result in severe human casualties or asset loss.

High-reliability wire harnesses required in these mission-critical environments demand highly precise engineering approaches, ranging from the chemical properties of materials to mechanical structural design and electromagnetic compatibility.

Reliability Requirements by Industry

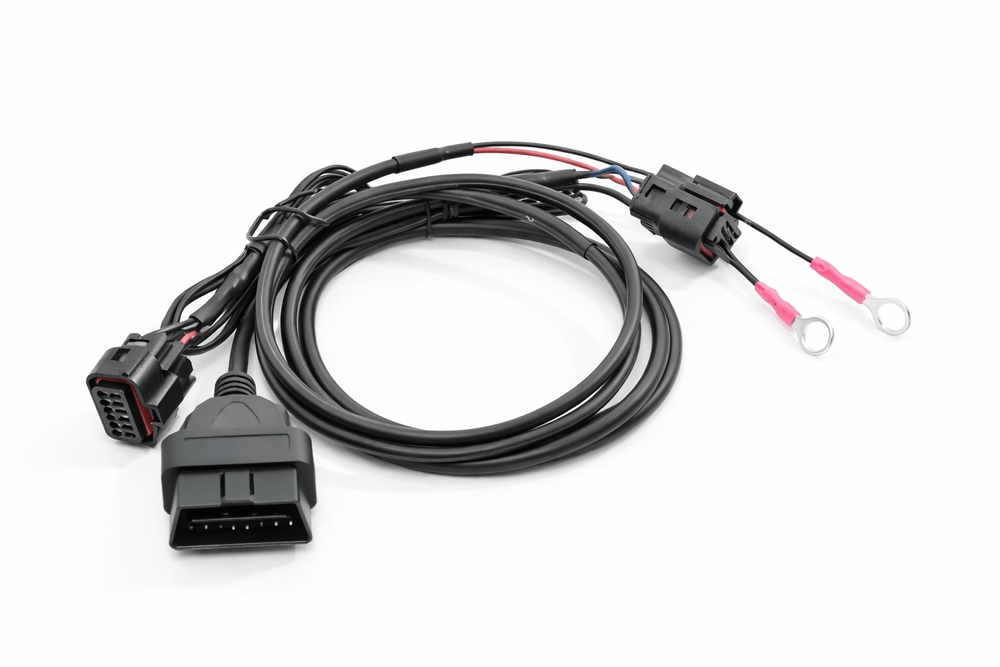

Automotive and Electric Vehicles (EV)

In automotive and EV environments, multiple factors such as high temperature, vibration, humidity, and electromagnetic interference interact simultaneously.

In EVs, the inclusion of high-voltage systems further emphasizes the importance of insulation performance and thermal stability.

Since vehicle electrical systems consist of interconnected circuits, the reliability of each individual circuit multiplicatively determines the overall system reliability.

Aerospace and Military Systems

In aerospace and military fields, extreme environmental conditions are the baseline.

Low pressure at high altitude
Extreme temperature variations
Severe vibration and shock

In these sectors, the use of standardized high-reliability components such as MIL-spec connectors and redundant system designs is common.

Additionally, due to extremely low fault tolerance, reliability-centered design is required from the earliest stages.

Medical Devices

Medical devices are subject to stricter regulations than any other industry.

Quality systems based on ISO 13485
Traceability requirements
Use of biocompatible materials

In particular, devices directly connected to patients require designs that consider both electrical stability and human safety simultaneously.

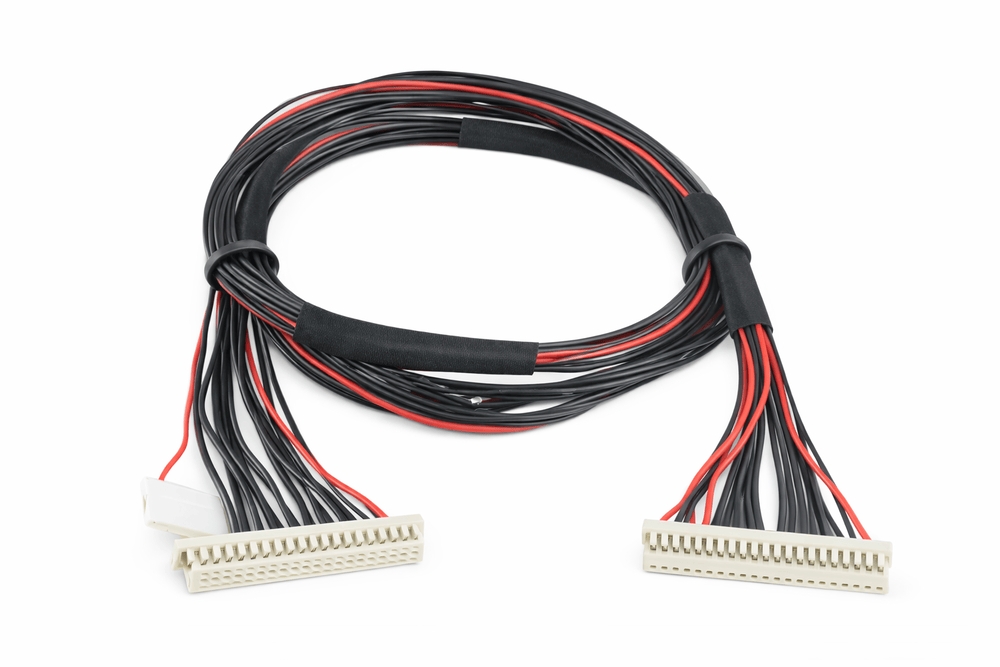

Core Elements of Wire Harness Manufacturing

1. Electrical Design Stability
   Impedance matching
   Voltage/current tolerance range
   Electromagnetic interference mitigation

2. Materials and Insulation Systems
   High temperature → insulation degradation
   Mechanical stress → cracking and failure
   Humidity → insulation deterioration

3. Connector and Crimping Quality
   Crimping defects
   Increase in contact resistance
   Terminal insertion failures

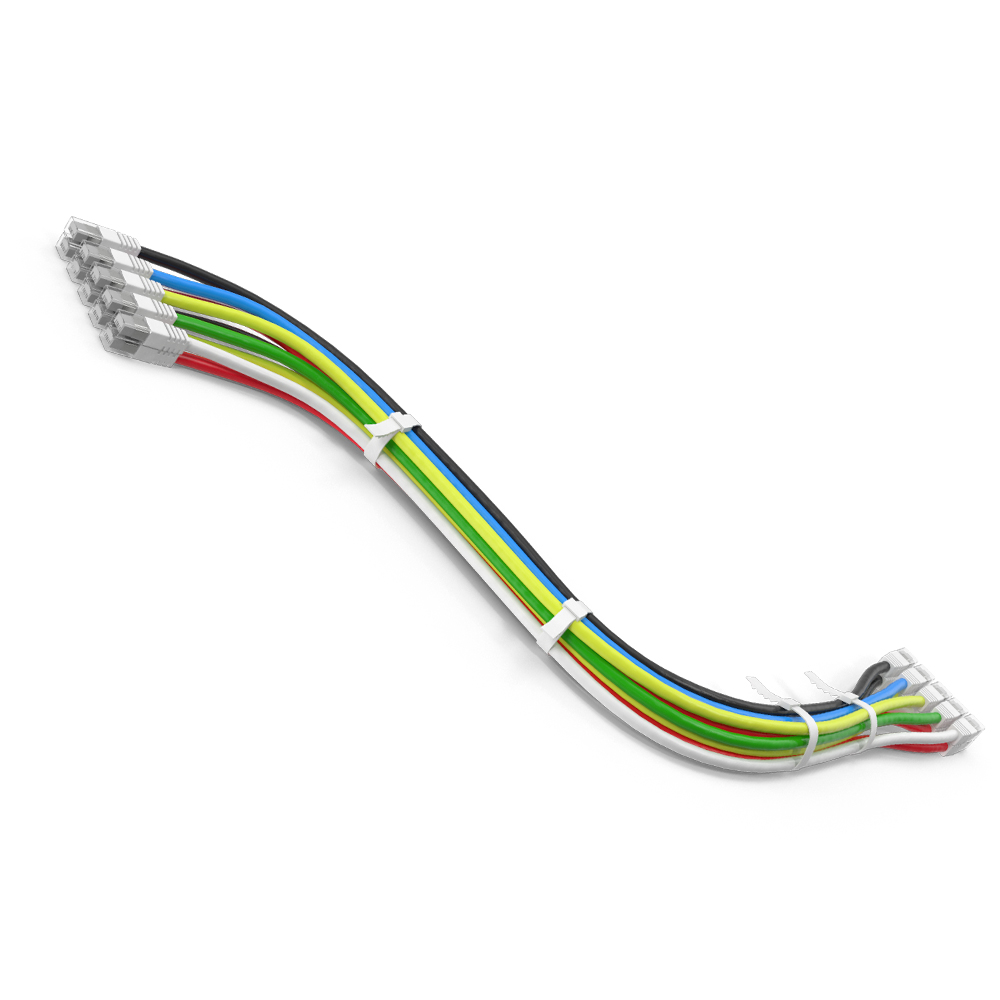

4. Mechanical Design and Routing
   Minimization of bending
   Prevention of friction and wear
   Avoidance of heat sources

5. Environmental Design (Waterproof, Dustproof, Thermal Resistance)
   High-reliability harnesses must be designed with environmental conditions in mind.

Waterproof structures (IP-rated design)
Heat and cold resistant materials
Chemical resistance

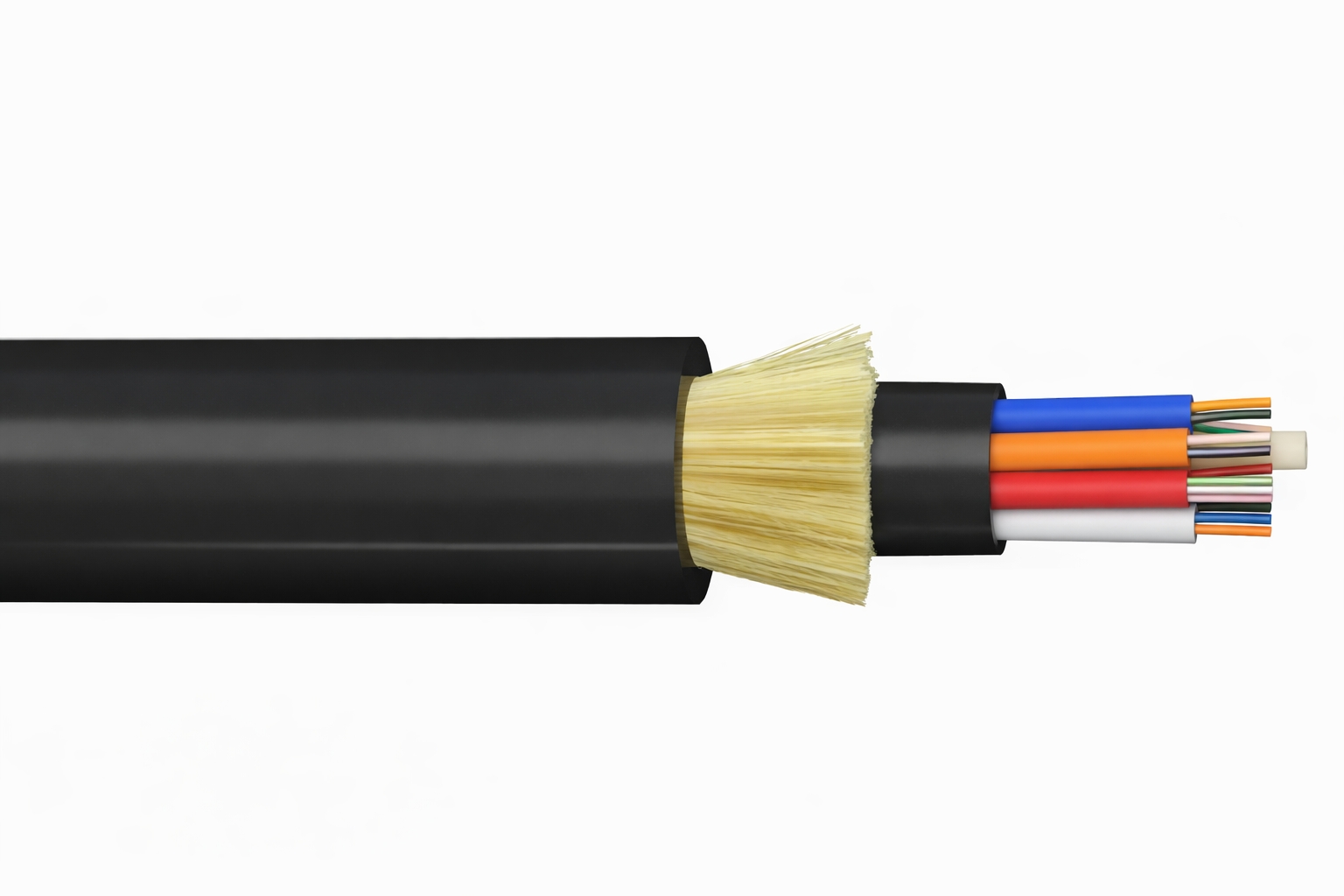

Material Engineering Approach and Physical Durability for Extreme Environments

Military and industrial harnesses are continuously exposed to extreme temperature changes, vibration, humidity, and chemical corrosion.

To overcome these conditions, the first critical factor is the selection of insulation materials. Unlike conventional PVC, high-reliability harnesses use specialized materials such as PTFE (Teflon), cross-linked polyethylene (XLPE), or polyurethane (PUR).

These materials maintain their physical properties across a wide temperature range from -55°C to +200°C and provide strong resistance to chemicals such as hydraulic fluids and fuels.

In environments with frequent vibration, such as mobility and aerospace, flex life becomes a key reliability indicator.

Rather than using thicker conductors, structural design using finely stranded wires improves flexibility and distributes stress effectively.

Surface treatments such as tin, silver, or gold plating on conductors prevent oxidation and minimize contact resistance, playing a decisive role in ensuring long-term electrical stability.

High-Voltage Environment and Thermal Management in Electric Vehicles

The transition to electric vehicles introduces new challenges of high voltage and high current to wire harness design.

High-voltage harnesses operating at hundreds of volts must ensure insulation breakdown strength capable of completely preventing leakage current, along with integrated interlock structures to prevent misconnection.

If Joule heat generated by high current is not effectively controlled, insulation degradation accelerates, potentially leading to system-wide fire risks.

To prevent this, strict application of derating curves considering ambient temperature and current density is essential during conductor sizing.

Additionally, thermal management is enhanced by selecting housing materials with high thermal conductivity or optimizing routing paths to promote airflow.

Beyond the visual identification of high-voltage orange insulation, advanced harnesses integrate temperature sensors for real-time monitoring, forming the foundation of next-generation EV systems.

Signal Integrity and EMI/EMC Shielding in Medical and Military Systems

In precision medical devices and military communication systems, electromagnetic interference is the most critical threat to signal integrity.

Harnesses used in these applications must completely block external noise while preventing internal signals from leaking.

Hybrid shielding techniques combining high-density braiding and aluminum foil are commonly applied.

The grounding method of the shielding layer significantly affects signal integrity.

If the shielding layer does not maintain uniform 360-degree contact at the connector backshell, even small gaps can create antenna effects that allow high-frequency noise intrusion.

Therefore, high-reliability harness manufacturing employs advanced processes such as ultrasonic welding or specialized crimping to ensure shielding continuity.

Shielding effectiveness is quantitatively verified through transfer impedance testing.

Industry Comparison Table

Precision Crimping Technology and Microstructural Stability of Connections

More than 80% of physical failures in wire harnesses occur at connection points between connectors and wires.

In sensor lines handling fine signals, the degree of plastic deformation during terminal crimping is a critical factor determining reliability.

Over-crimping can break conductor strands and weaken tensile strength, while under-crimping creates gaps that lead to oxidation and exponential increases in contact resistance.

To eliminate human error, CFM (Crimp Force Monitor) systems are now widely used to monitor load variations in real time during crimping processes.

Additionally, ultrasonic welding enables molecular-level bonding between conductors, achieving near-zero contact resistance and enhancing reliability in high-value harness production.

These precision connection technologies ensure complete electrical continuity even under severe vibration conditions.

Testing and Validation Systems for Reliability Assurance

To ensure that completed wire harnesses meet their declared service life in real-world conditions, accelerated life testing that simulates harsh environments is essential.

Temperature cycling tests evaluate fatigue failure caused by differences in thermal expansion coefficients between dissimilar materials.

High-temperature and high-humidity bias testing detects ion migration phenomena within insulation materials, preventing potential short circuits in advance.

In medical and military applications, HALT (Highly Accelerated Life Testing) is conducted to identify design limits under all possible physical stresses throughout the product lifecycle.

The data obtained from these rigorous validation processes not only serves as quality assurance but also becomes a valuable asset for refining design libraries through comparison with future field data.

High-reliability wire harnesses represent the culmination of system engineering, achieved through the integration of data-driven engineering and precision manufacturing processes.
