정밀 CNC 가공 스크류 홈 나사홀 가공

Precision CNC Machining for Threaded Holes and Screw Grooves

CNC Precision Machined Components: Threaded Holes and Screw Grooves

Threaded holes and screw grooves in precision mechanical components are not merely fastening features. They function as critical structural elements that determine system alignment, load transfer, and long-term assembly stability.

In industries such as aerospace, medical devices, semiconductor equipment, and precision measurement systems, even microscopic deviations in thread geometry can influence vibration characteristics, tightening torque behavior, and component lifespan. For this reason, ultra-precision CNC machining technologies are essential in manufacturing threaded structures for these applications.

CNC machining enables precise control of toolpaths, cutting depth, feed rate, and spindle speed through computer-controlled automation. This level of control allows manufacturers to achieve complex geometries while maintaining exceptional repeatability and dimensional accuracy.

Threaded hole machining and screw groove cutting are typically achieved through helical toolpath-based cutting motion, where the cutting tool follows a spiral trajectory. During this process, maintaining stable chip evacuation and minimizing tool deflection become critical technical factors that directly affect machining precision and thread integrity.

Thread Machining Accuracy Required in CNC Components

In precision CNC components, thread machining is considered functional machining, because it directly determines the mechanical performance of the assembled structure.

While general mechanical parts may operate within tolerances of ±0.1 mm, precision equipment and medical device components often require tolerance management at the tens of micrometers level.

International manufacturing standards define allowable dimensional deviations through tolerance systems such as ISO 2768. In metal machining, smaller dimensional ranges commonly follow a baseline tolerance of approximately ±0.05 mm, while functional interfaces such as threaded connections often require tighter custom tolerances.

To maintain this level of accuracy, several machining parameters must be simultaneously controlled.

Tool rigidity and tool wear condition
Thermal deformation compensation of the machine tool
Optimization of cutting conditions including feed, speed, and depth of cut
Suppression of tool deflection during machining
Chip evacuation and cutting fluid flow management

Because threaded holes and screw grooves directly determine the fastening strength of components, conventional tapping processes are often insufficient for high-precision applications. Ultra-precision CNC machining frequently adopts thread milling techniques instead.

Thread milling allows multiple thread pitches to be produced with a single cutting tool while distributing the cutting load more evenly. This significantly improves surface finish quality along the thread profile. Additionally, it minimizes incomplete threads at the start and end of the thread path, allowing bolt engagement to approach near-zero clearance.

During toolpath design, compensation algorithms that account for the elastic deformation of cutting tools are often implemented. These corrections allow manufacturers to eliminate minute pitch deviations that could otherwise compromise assembly performance. In high-vacuum systems and ultra-precision measurement equipment where even micro-vibration cannot be tolerated, such thread accuracy becomes a decisive factor influencing overall equipment durability.

Screw Groove Machining

A screw groove or thread profile is a helical cutting structure. In CNC machine tools, it is typically produced through helical interpolation, where the cutting tool simultaneously rotates while moving along the axial direction of the workpiece.

This machining approach removes material along a spiral trajectory and provides several advantages.

Consistent pitch maintenance
Stable control of thread diameter
Reduced cutting load on the tool
Improved chip evacuation stability

In helical interpolation-based machining, several control variables determine final accuracy. These include the tool entry angle, radial compensation, and the application of spring passes during finishing.

Through these parameters, deviations in thread diameter and pitch error can be minimized. For high-precision components, a final micro-finishing cut is often applied to stabilize the thread geometry. This finishing step plays an important role in reducing tightening torque variation during assembly.

Passivation Process for Reliability Enhancement

After mechanical precision has been achieved, chemical stability of the component must also be secured through passivation treatment.

For stainless steels and special alloy steels, machining operations may expose free iron or embed microscopic tool particles on the surface. Passivation removes these contaminants using nitric acid or citric acid solutions and forms a thin chromium oxide-based protective layer on the material surface.

This protective film is extremely thin and does not affect the dimensional accuracy of precision components. At the same time, it significantly enhances corrosion resistance.

To ensure uniform coverage even within narrow threaded holes where cleaning is difficult, ultrasonic cleaning and controlled immersion processes are commonly applied. These processes help prevent oxidation reactions in harsh environments such as salt spray exposure or high-temperature humidity conditions.

Ultimately, passivation serves as the final reliability assurance step that preserves the mechanical precision of a component through long-term chemical protection.

Precision Comparison in CNC Thread Machining

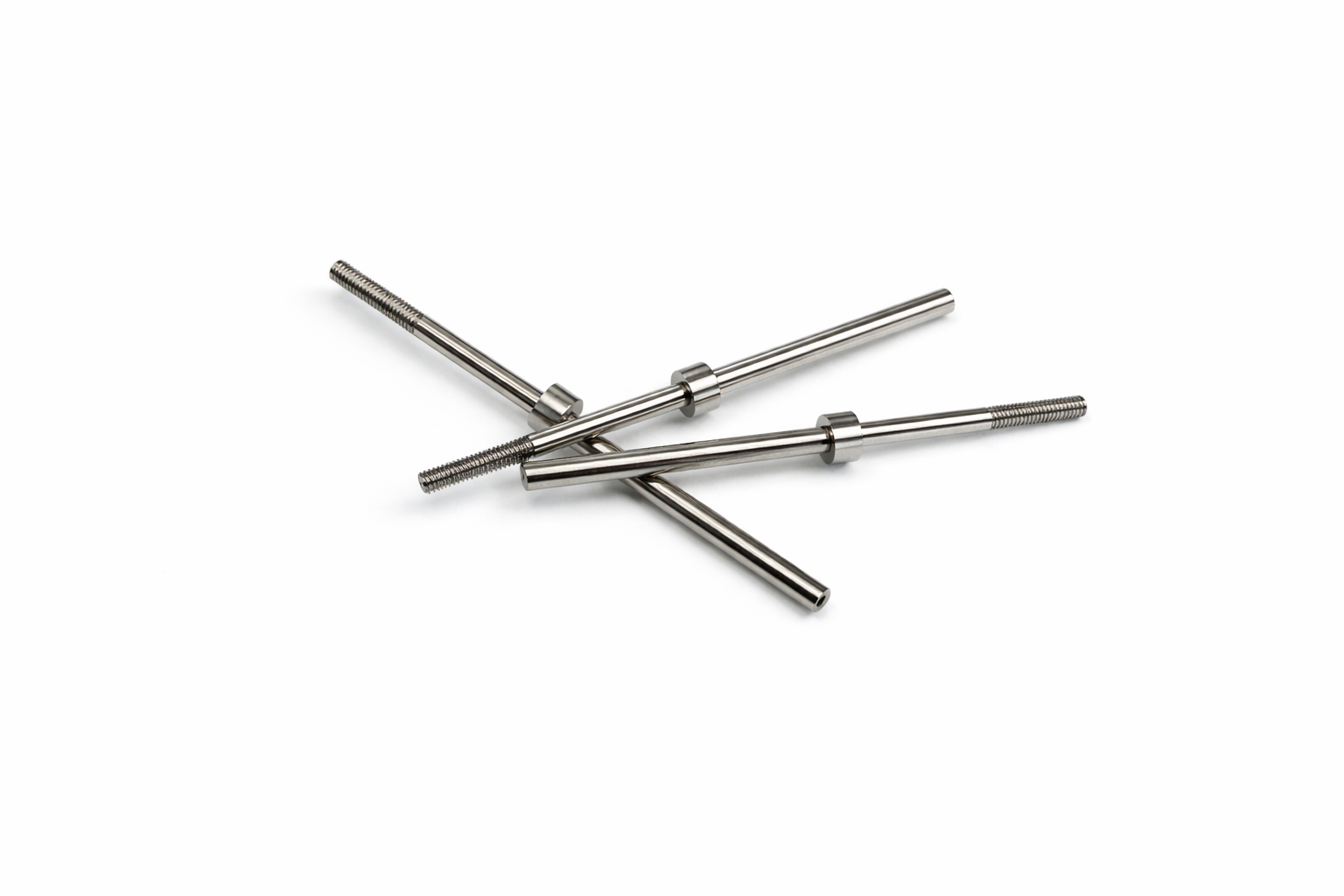

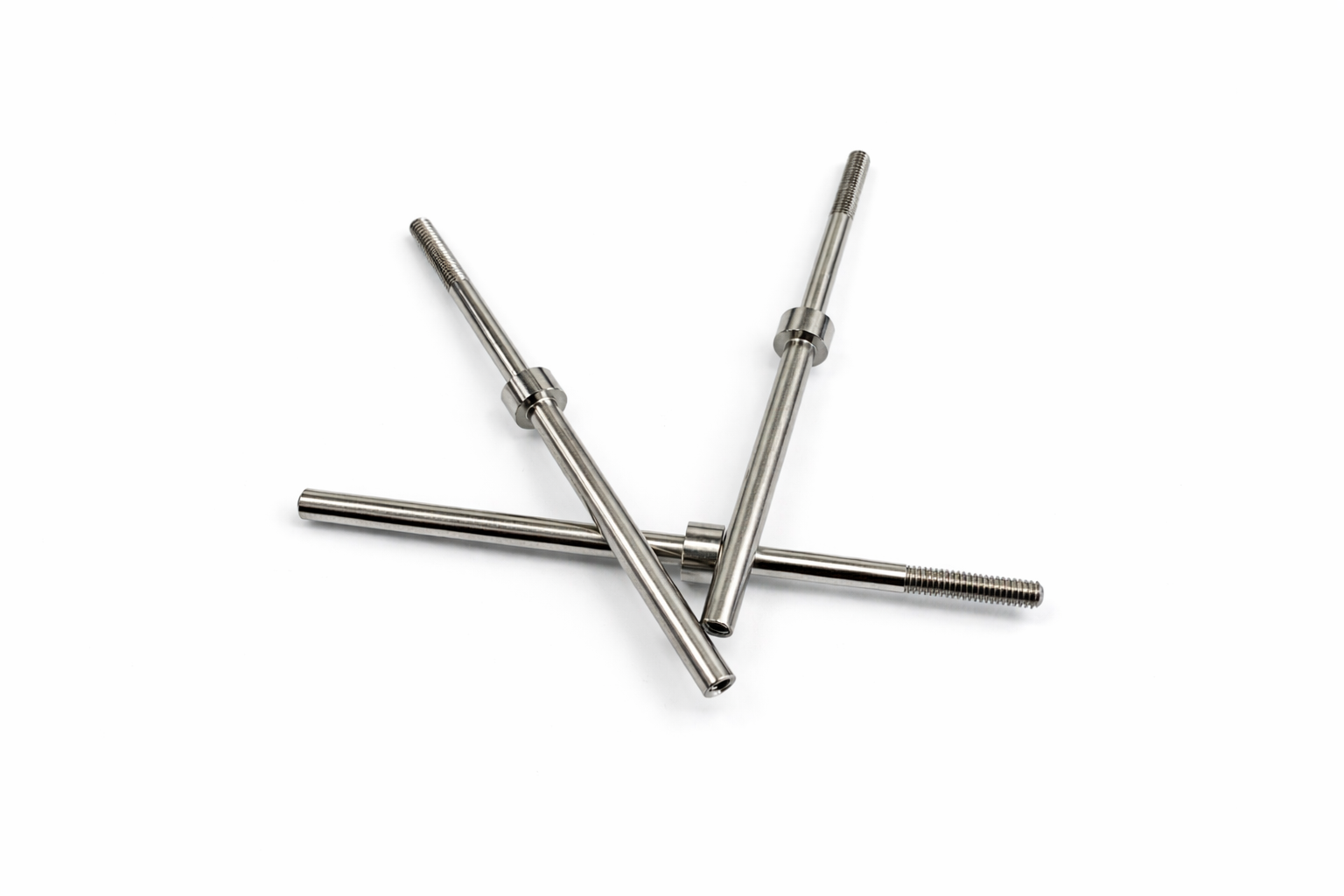

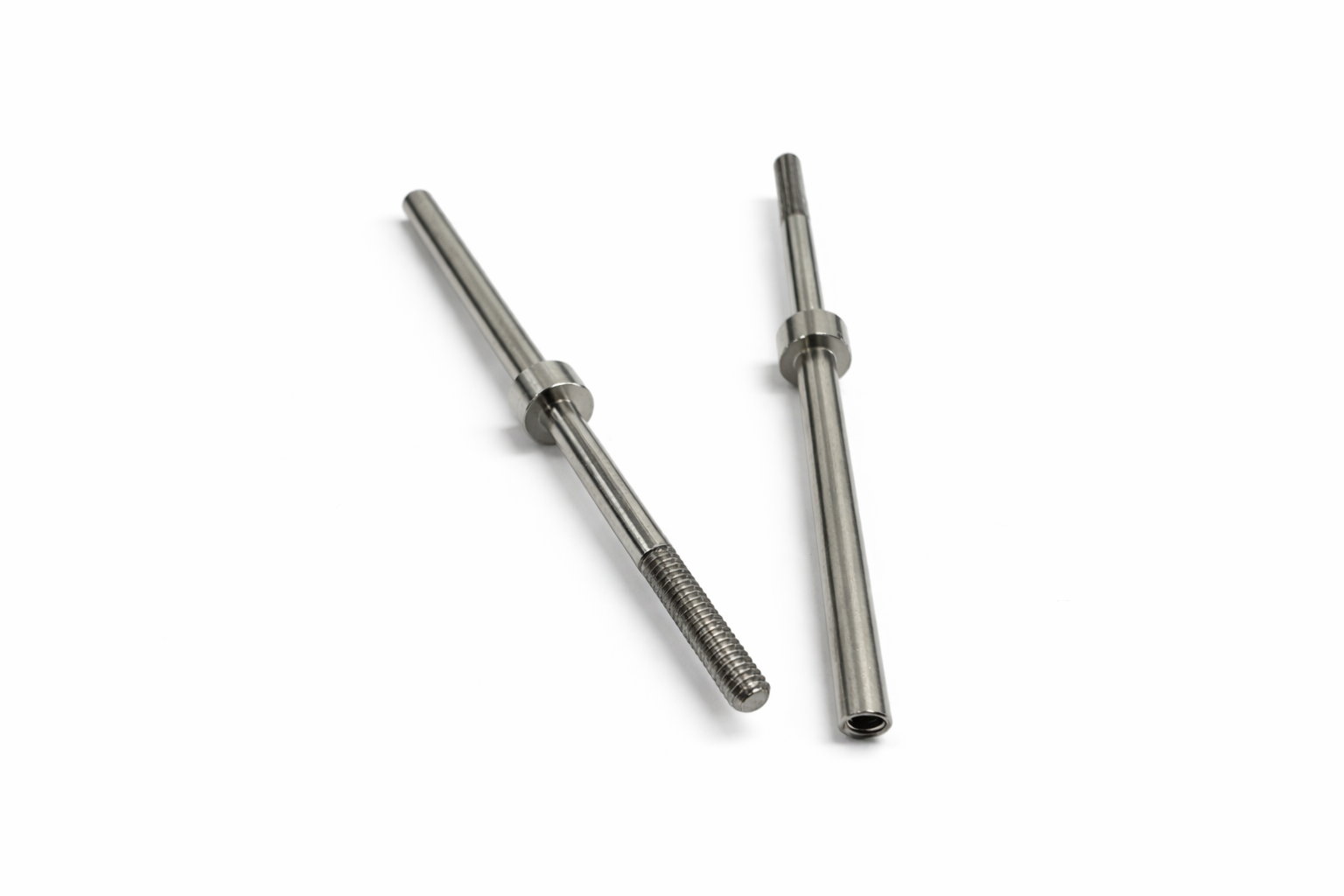

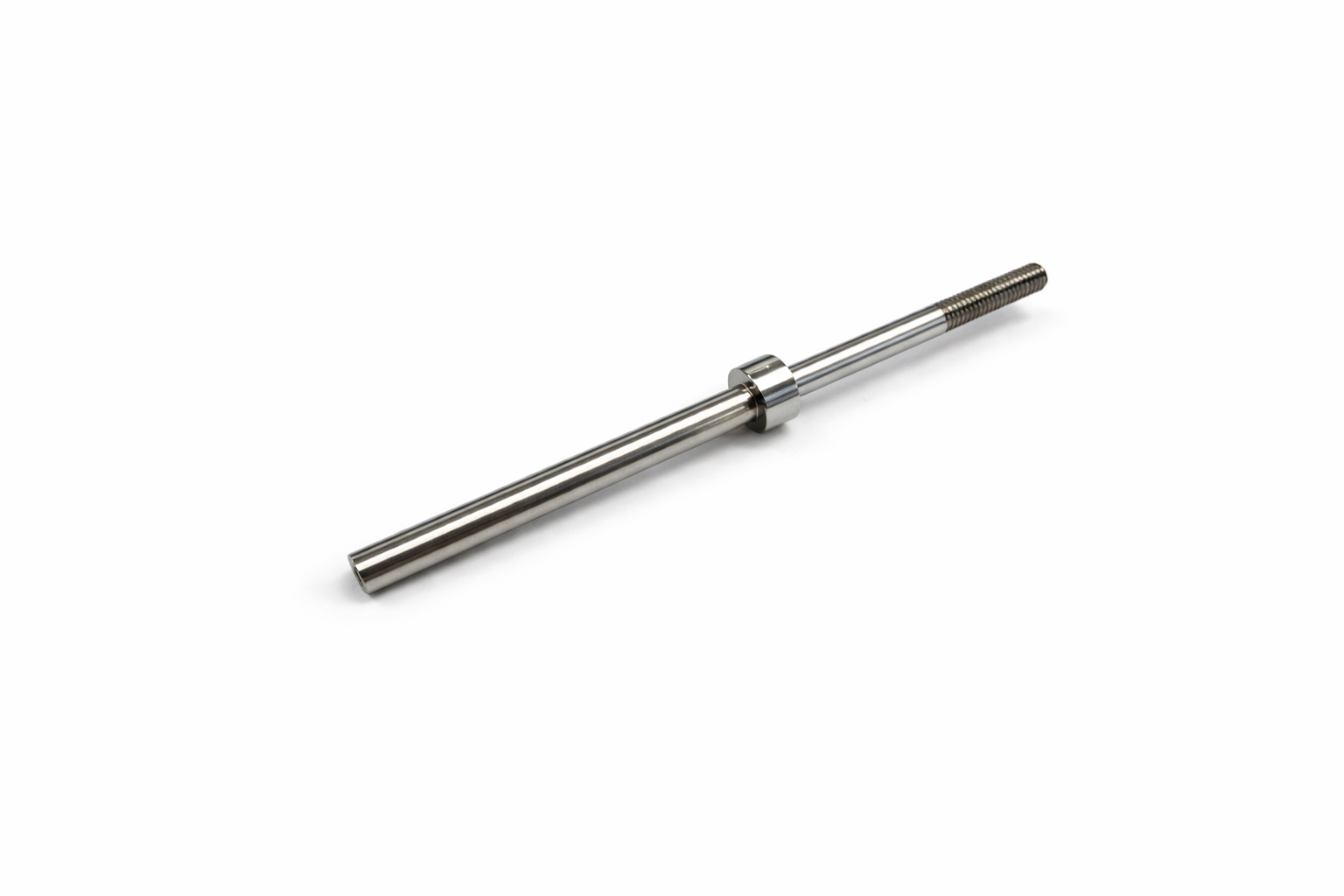

Precision CNC Machined Components

In precision CNC machining, threaded holes and screw grooves are not simple fastening structures. They represent core geometric features that determine the structural stability and performance of mechanical systems.

Thread pitch, diameter, surface condition, and assembly clearance must all be precisely controlled to ensure long-term reliability of equipment.

Precision CNC machined components play essential roles in semiconductor manufacturing systems, aerospace propulsion mechanisms, and robotic medical equipment. In these industries, even a single threaded hole must withstand high pressure or endure millions of repetitive motions without generating mechanical play.

Future manufacturing environments will increasingly incorporate AI-based tool wear prediction and integrated smart factory control systems. These technologies allow ultra-precision quality to be maintained consistently without relying solely on operator experience.

The integration of precision machining and passivation technology represents a sophisticated engineering solution that extends beyond component manufacturing. It ensures long-term reliability across the entire lifecycle of complex mechanical systems.

Reducing machining error is ultimately a challenge governed by the laws of physics, while improving durability through passivation represents the mastery of chemical stability. When these two aspects work together in balance, manufacturers can achieve the highest levels of mechanical precision recognized in global industrial markets.
