수지입(Engineering Plastic) 정밀 부품 가공 기술

Precision Machining Technology for Engineering Plastic Components

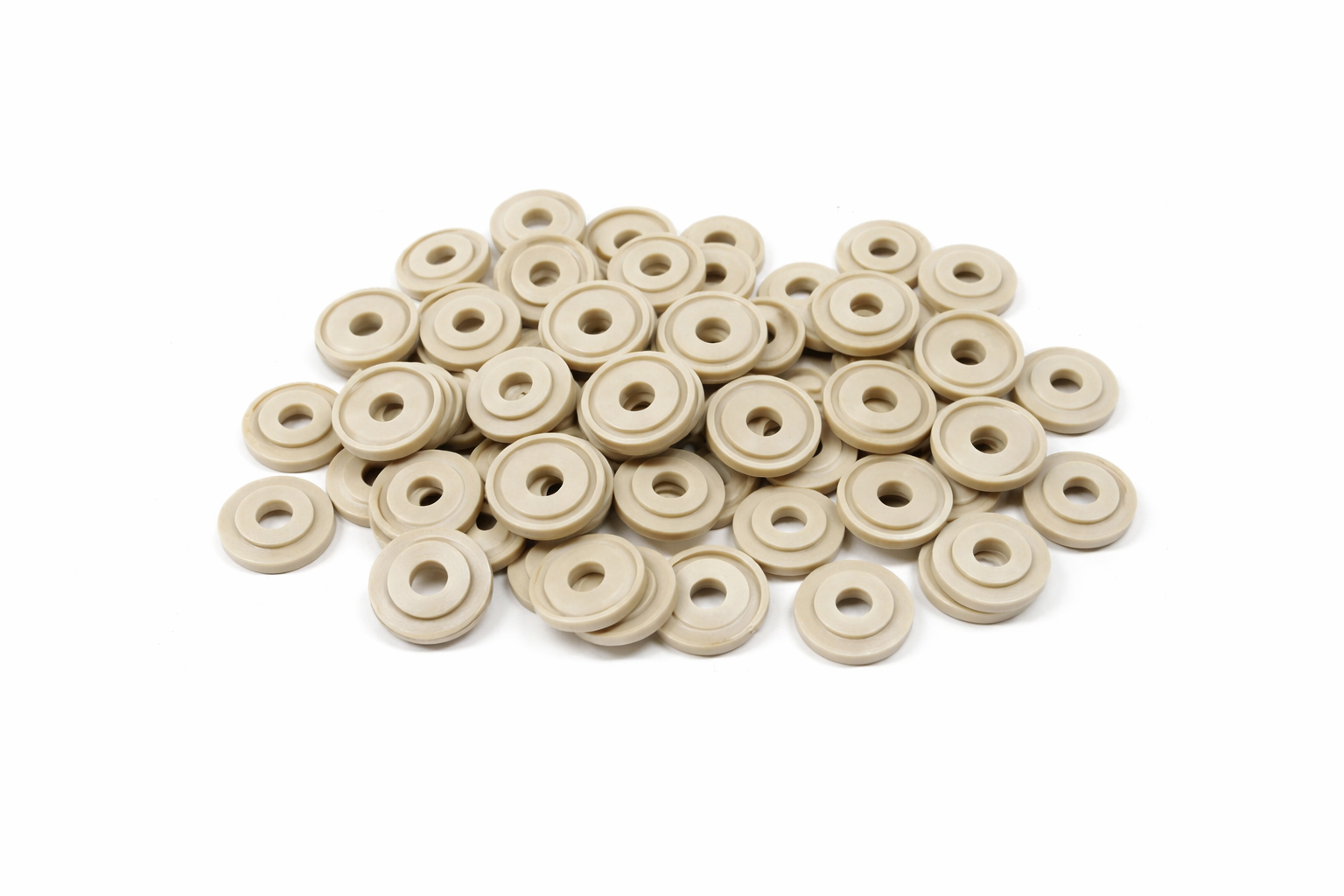

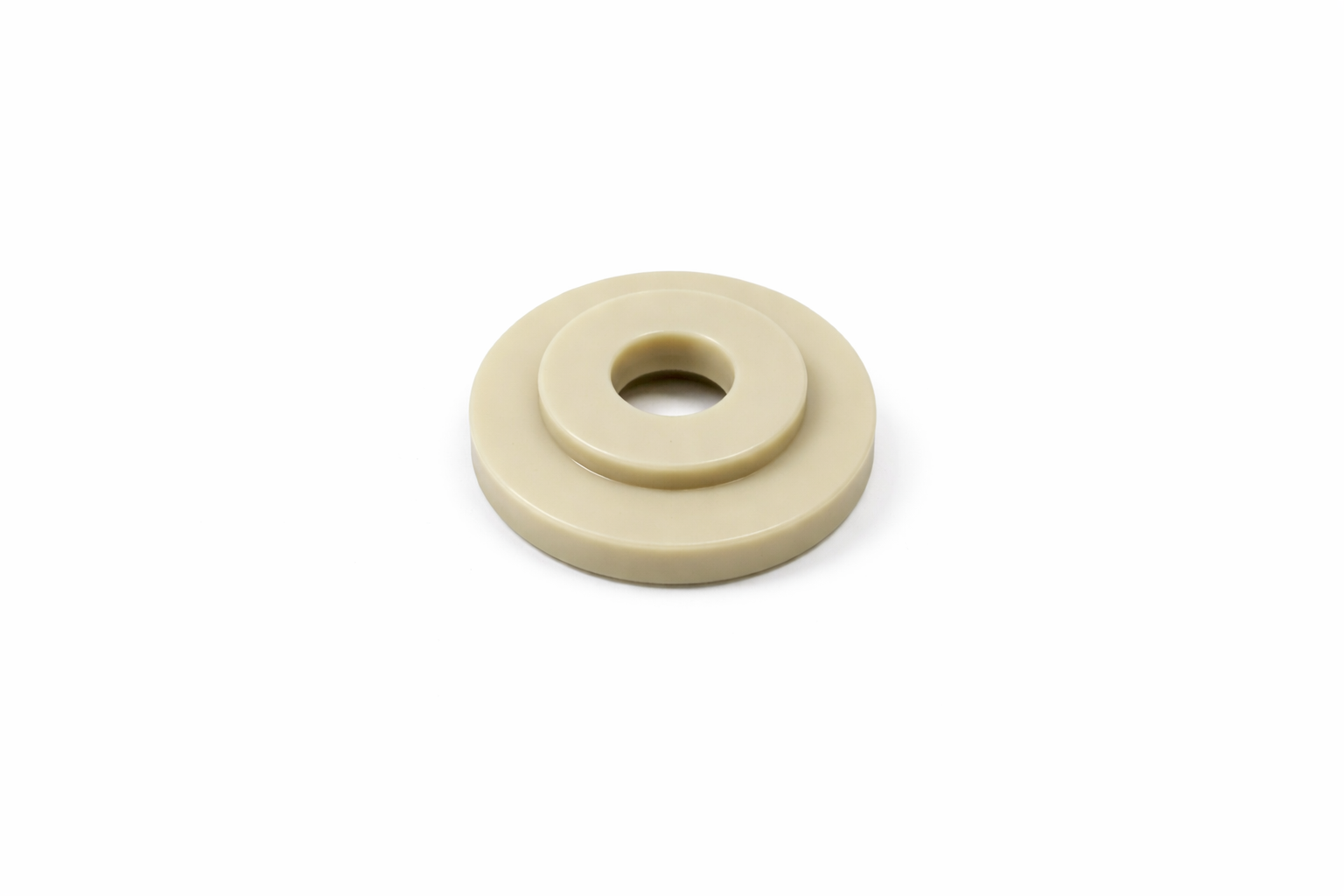

CNC Machined Resin Rings

Structural Role and Application Background of Engineering Plastic Rings

Plastic resin-based components are no longer limited to lightweight applications but are widely utilized as functional mechanical elements based on low friction and wear-resistant properties. In particular, resin rings inserted into shafts are typically classified as sleeve bearings or bushings, playing a critical role in reducing friction and preventing damage to mating components during rotational or reciprocating motion.

Engineering plastics exhibit lower friction coefficients, inherent self-lubricating characteristics, and excellent corrosion resistance compared to metals, enabling stable performance even in lubrication-restricted environments. Materials such as POM, PTFE, and PEEK demonstrate minimized wear when in contact with metal surfaces, forming highly effective tribological systems when paired with metal shafts.

Precision CNC Machining of Engineering Plastics and the Technical Significance of Washer Integration

The precision machining of engineering plastics has long been recognized as a viable alternative to metal components in industrial applications. Components such as bushings or sleeve-type inserts, which are subjected to direct frictional loads inside shafts, require a comprehensive integration of material selection, machining accuracy, and additional wear protection design to function effectively. This is not merely a material removal process but a highly engineered solution that reflects operating conditions, contact mechanics, and cyclic load behavior.

Why Engineering Plastics Are Machined from Rod Stock

The most common raw material forms for engineering plastic components are rod stock and plate stock. Machining components from rod stock using CNC lathes eliminates the need for molds, making it highly suitable for low-volume, high-mix production. While injection molding becomes cost-effective at high production volumes, CNC machining offers superior efficiency for small to medium batch production.

Another critical advantage of rod-based machining lies in the isotropic material properties. Injection-molded parts often exhibit molecular orientation due to material flow within the mold, leading to anisotropic mechanical properties. In contrast, machined components from extruded rod stock maintain uniform material characteristics, ensuring superior dimensional stability, especially in precision applications.

Technical Significance of Washer-Integrated Structures

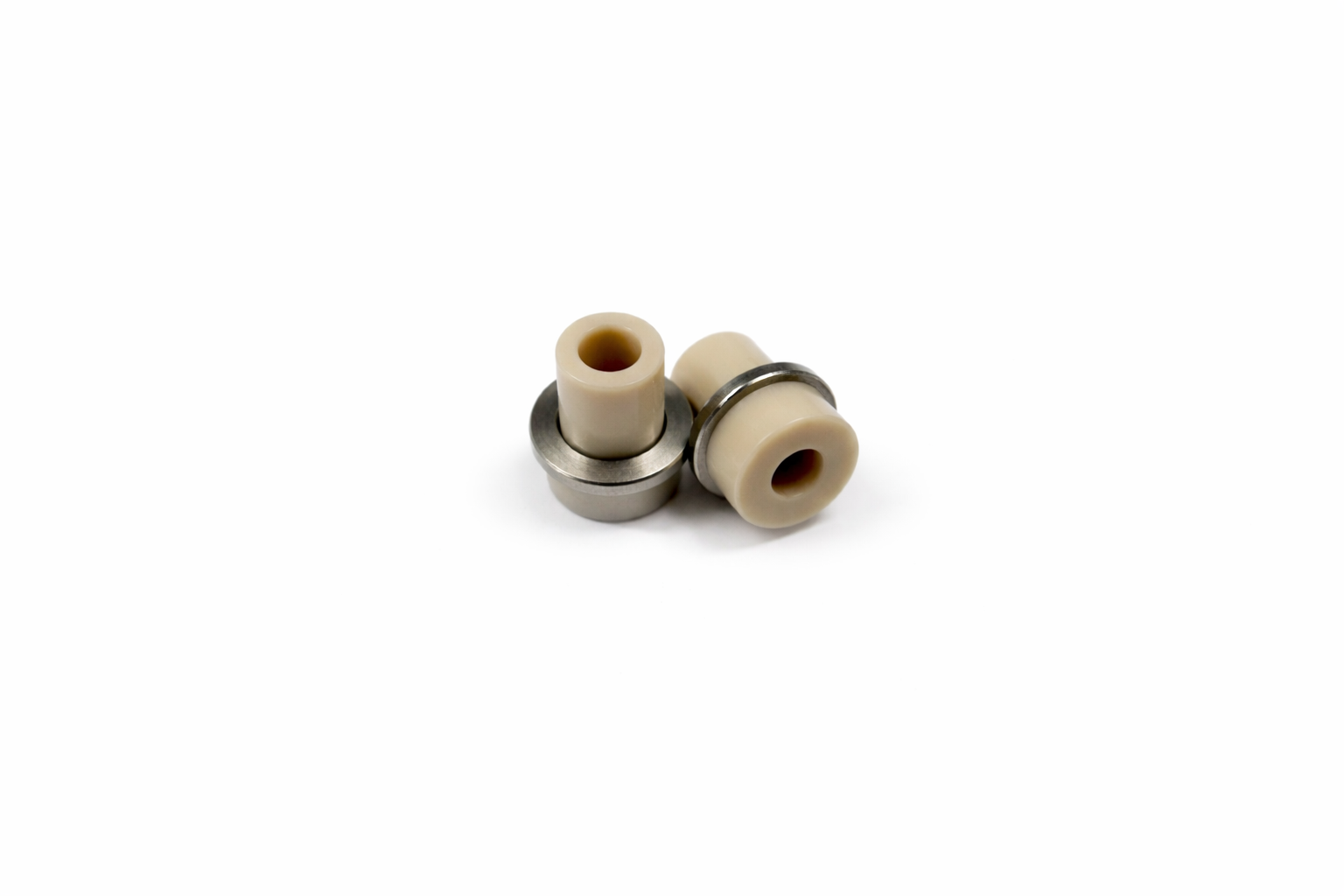

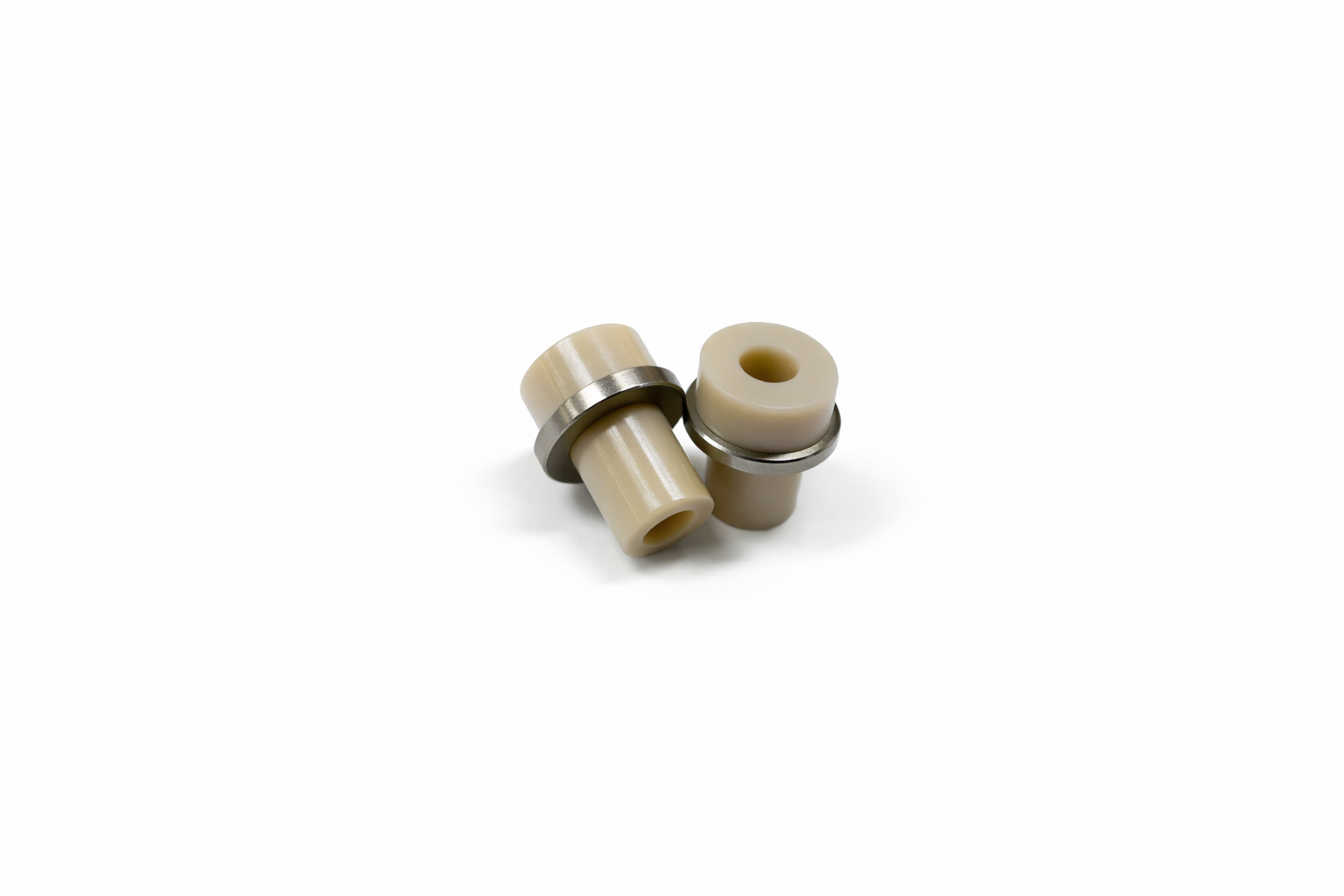

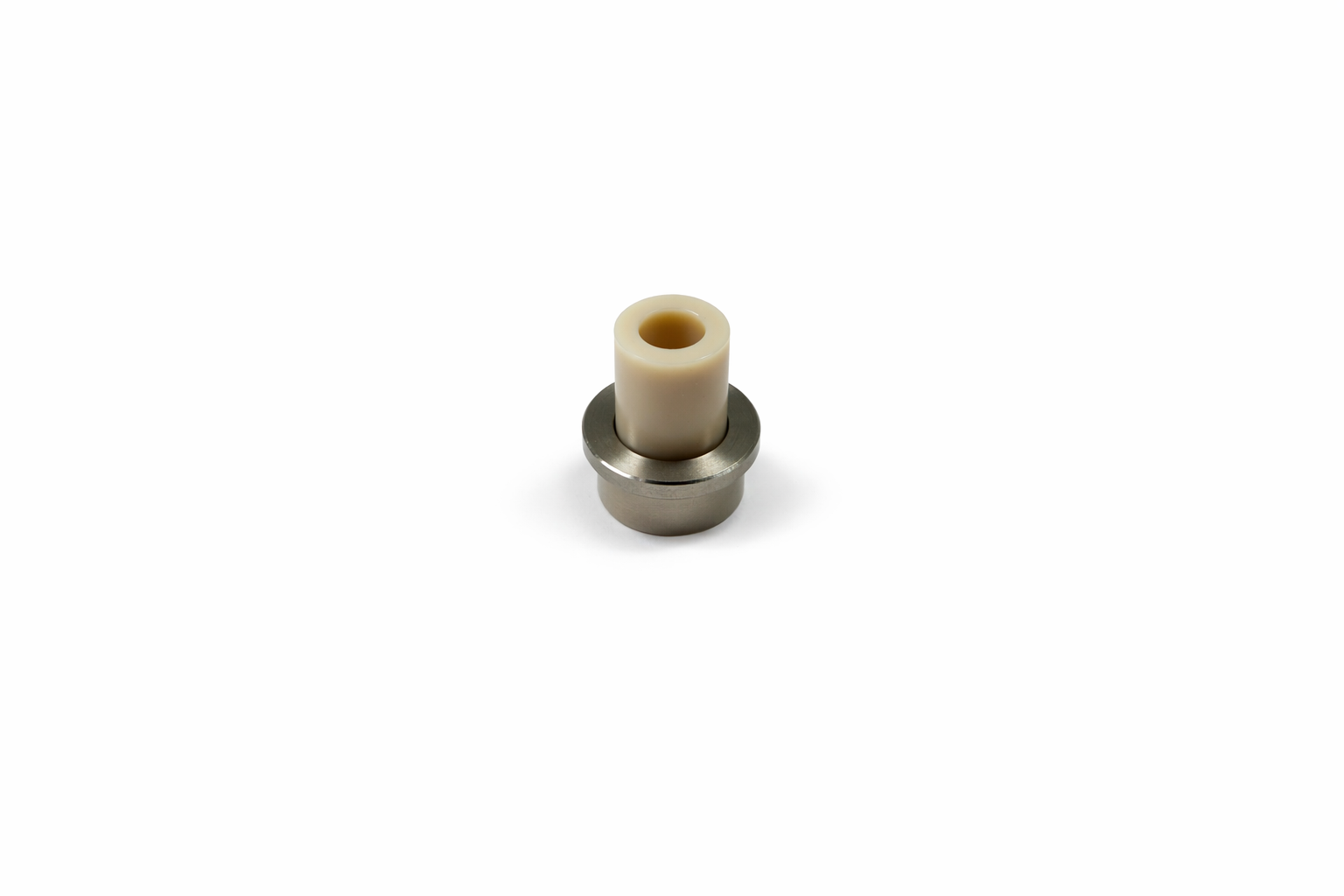

The first configuration, where a metal washer is integrated with the resin ring, represents a composite bearing structure rather than a simple reinforcement.

When metal and polymer are combined, the following functional synergy is achieved:

Metal: Load-bearing capacity and thermal conductivity
Plastic: Low friction and wear resistance
Composite structure: Simultaneous realization of high load capacity and low friction

Composite bearings of this type are widely used to achieve both durability and tribological efficiency. Within shaft environments, several challenges arise:

Increased contact pressure
Localized frictional heat generation
Creep deformation and wear of plastic materials

The washer serves multiple critical functions:

Axial load distribution (thrust load distribution)
Surface protection and delayed wear progression
Shock absorption and deformation suppression

Technical Value of CNC Machined Plastic Components

Although plastic components are commonly produced through injection molding, machining from bar stock offers distinct advantages in high-precision applications:

Micron-level tolerance capability
High geometric flexibility (complex profiles, precision grooves)
No initial tooling investment for molds
Uniform material density and structural consistency

In sliding and bearing applications, dimensional accuracy and surface roughness (Ra) directly determine performance, making CNC machining particularly advantageous.

The differentiation between manufacturing methods can be summarized as follows:

Injection molding: High reproducibility, suitable for mass production
CNC machining: Optimized for precision and functional performance

Engineering Plastic Material Properties Comparison

Limitations of Injection Molding and Advantages of Precision CNC Machining

Injection molding provides economic advantages in mass production but presents structural limitations for precision bushing components. Weld lines may form depending on gate locations, and uneven shrinkage can degrade roundness in inner and outer diameters. In flange-integrated bushings, differential cooling rates often lead to warpage.

CNC machining, on the other hand, enables precise control of cutting conditions, consistently achieving roundness grades of IT6–IT7 and surface roughness below Ra 0.4 μm. The industrial benchmark for bushing performance, Ra ≤ 0.8 μm, is readily achievable through CNC machining, whereas injection-molded parts typically require additional finishing processes to meet such standards.

For custom, low-volume components, CNC machining allows immediate design modifications without tooling constraints, making it a practical solution for both prototyping and limited production.

Industrial Applications of CNC Machined Resin Rings

Such resin ring structures are widely applied across multiple industries:

Internal sliding mechanisms in connectors and electronic components
Automotive shafts and rotating assemblies
Precision drive systems in medical devices
Lubrication-free sliding systems in semiconductor equipment

In environments where lubrication is restricted, plastic-based bearing systems become essential, contributing significantly to maintenance cost reduction.

Precision Composite Design of CNC Plastic Components

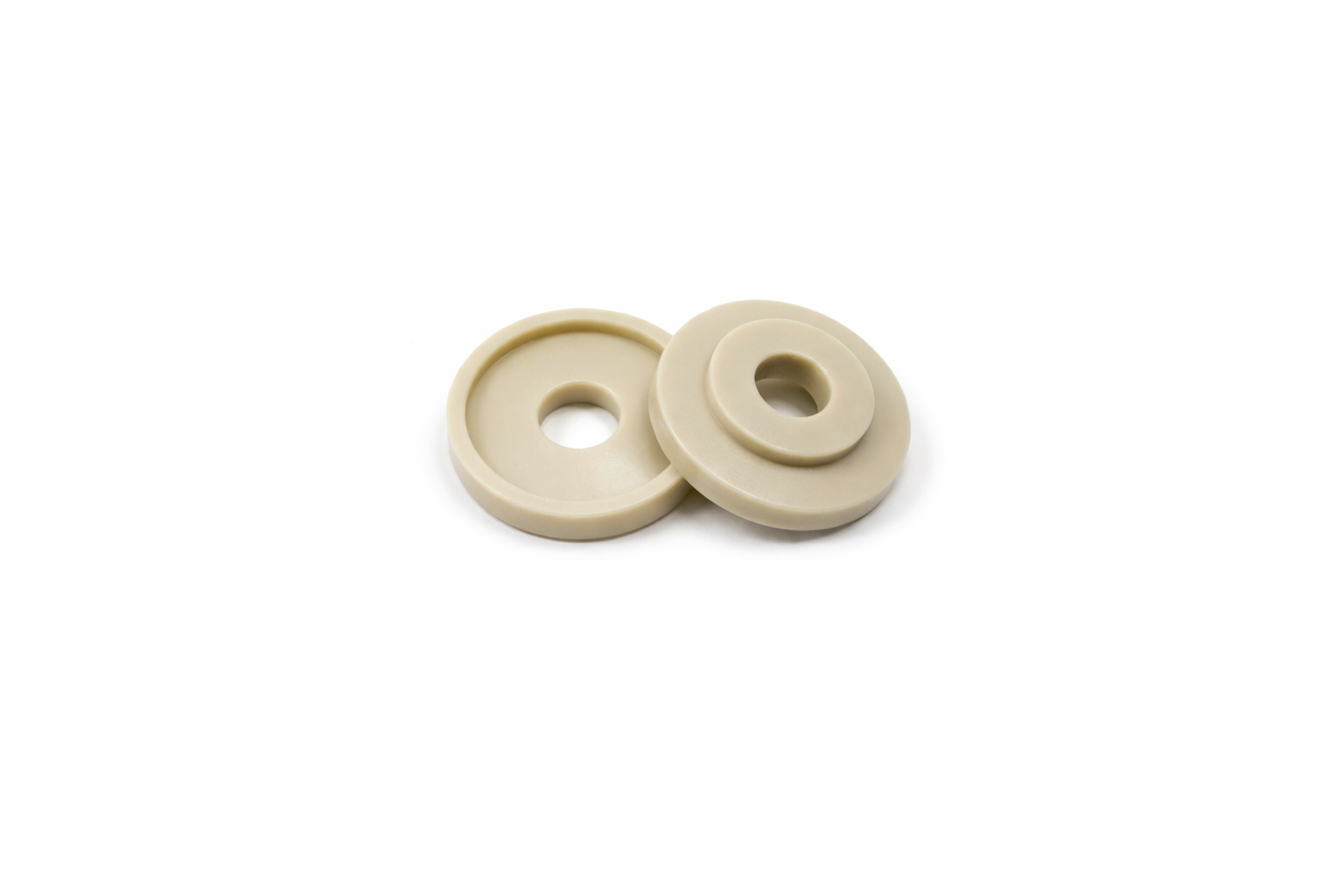

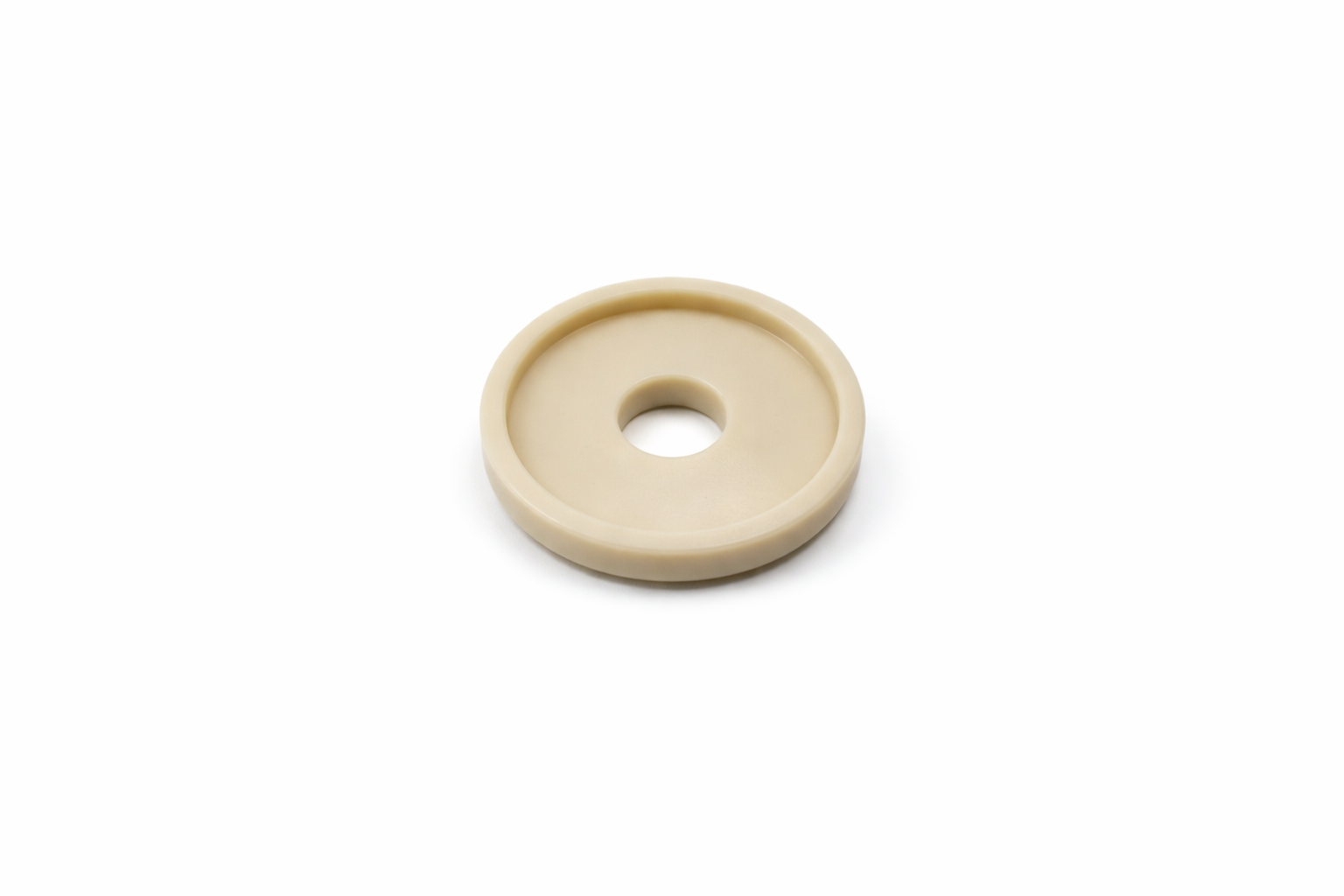

As demonstrated by the two configurations, CNC machined plastic components can function either as standalone designs or as composite structures integrated with metal washers. Flange-type washer-integrated components distribute loads through surface contact with the shaft interface, enabling the plastic material to absorb thrust loads.

The balance between rigidity and flexibility is determined by the ratio of flange thickness to boss height. To prevent creep deformation under high surface pressure, materials with high compressive strength such as POM or PEEK are typically selected. Wear behavior under cyclic loading conditions is evaluated using the PV value (pressure × velocity), and operation must remain within material-specific PV limits to ensure predictable service life.

Ultimately, the performance of CNC machined engineering plastic components is defined by the integration of material selection, tolerance design, machining parameters, and auxiliary structural elements such as washers. This represents not a simple machining process, but a comprehensive engineering approach that considers the entire physical operating environment.
